vtkMRMLFileIOHandler Class Reference

#include <Libs/MRML/Logic/vtkMRMLFileIOHandler.h>

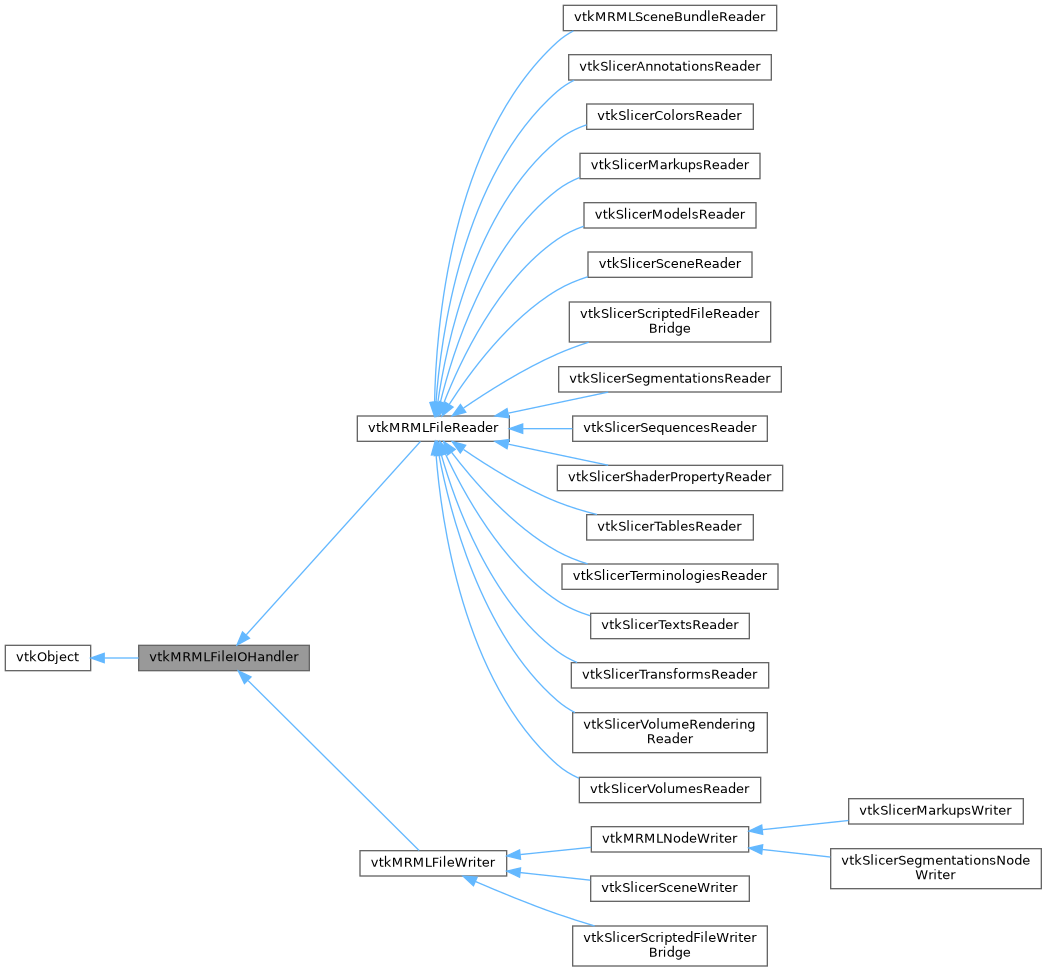

Inheritance diagram for vtkMRMLFileIOHandler:

Collaboration diagram for vtkMRMLFileIOHandler:

Public Types
typedef vtkObject	Superclass

Public Member Functions
void	FillOptionsDescription (vtkMRMLIOProperties *properties, vtkMRMLIOOptionsDescription *description)
virtual const char *	GetClassName ()
virtual std::string	GetDescription ()
	What to call this in a file dialog ("Volume", "Mimics project").
const std::vector< std::string > &	GetExtensions () const
vtkMRMLFileIOManager *	GetFileIOManager () const
virtual std::string	GetFileType ()
virtual std::string	GetMatchedExtension (const std::string &filePath) const
	The longest matching extension of filePath, or an empty string.
const std::vector< std::string > &	GetNameFilters () const
vtkMRMLIOProperties *	GetOptionDefaults ()
virtual void	GetOptionsDescription (vtkMRMLIOOptionsDescription *description)
std::string	GetOptionsDescriptionJSON (vtkMRMLIOProperties *properties)
void	GetOptionValues (vtkMRMLIOProperties *properties, vtkMRMLIOProperties *values)
vtkMRMLScene *	GetScene () const
vtkMRMLMessageCollection *	GetUserMessages () const
virtual int	IsA (const char *type)
virtual bool	IsWriter () const
	Whether this writes rather than reads.
virtual bool	MatchesExtension (const std::string &filePath) const
void	PrintSelf (ostream &os, vtkIndent indent) override
virtual void	SetDescription (std::string)
void	SetFileIOManager (vtkMRMLFileIOManager *manager)
virtual void	SetFileType (std::string)
void	SetNameFilters (const std::vector< std::string > &filters)
	The name filters, as Slicer writes them: "Mimics project (*.mcs *.mcs.gz)".
virtual void	SetScene (vtkMRMLScene *scene)
	Where the nodes go, and where messages for the user are collected.

Static Public Member Functions
static std::vector< std::string >	ExtensionsFromNameFilter (const std::string &nameFilter)
	The extensions named by a filter such as "Mimics project (*.mcs *.mcs.gz)".
static std::vector< std::string >	GetMatchingNameFilters (const std::string &filePath, const std::vector< std::string > &nameFilters, bool requireReadableFile, int *longestExtensionMatch=nullptr)
static int	IsTypeOf (const char *type)
static std::string	LongestMatchingExtension (const std::string &filePath, const std::vector< std::string > &extensions)
static std::vector< std::string >	NameFilterToWildcards (const std::string &nameFilter)
static vtkMRMLFileIOHandler *	New ()
static vtkMRMLFileIOHandler *	SafeDownCast (vtkObject *o)
static bool	WildcardMatch (const std::string &pattern, const std::string &text)
	Case-insensitive wildcard matching of the whole text. Supported wildcards: '*', '?', and character sets ("[abc]", "[!abc]").

Protected Member Functions
	vtkMRMLFileIOHandler ()
	~vtkMRMLFileIOHandler () override

Protected Attributes
std::string	Description
std::vector< std::string >	Extensions
vtkWeakPointer< vtkMRMLFileIOManager >	FileIOManager
std::string	FileType
std::vector< std::string >	NameFilters
vtkNew< vtkMRMLIOProperties >	OptionDefaults
vtkWeakPointer< vtkMRMLScene >	Scene
vtkNew< vtkMRMLMessageCollection >	UserMessages

Detailed Description

Base class of file readers and writers (vtkMRMLFileReader, vtkMRMLFileWriter). It stores the file type, description, and name filters of the reader or writer and describes its options.

See https://slicer.readthedocs.io/en/latest/developer_guide/mrml_overview.html#file-reading-and-writing

Definition at line 41 of file vtkMRMLFileIOHandler.h.

Member Typedef Documentation

Superclass

typedef vtkObject vtkMRMLFileIOHandler::Superclass

Definition at line 45 of file vtkMRMLFileIOHandler.h.

Constructor & Destructor Documentation

vtkMRMLFileIOHandler()

vtkMRMLFileIOHandler::vtkMRMLFileIOHandler ( )

protected

~vtkMRMLFileIOHandler()

vtkMRMLFileIOHandler::~vtkMRMLFileIOHandler ( )

overrideprotected

Member Function Documentation

ExtensionsFromNameFilter()

static std::vector< std::string > vtkMRMLFileIOHandler::ExtensionsFromNameFilter ( const std::string & nameFilter )

static

The extensions named by a filter such as "Mimics project (*.mcs *.mcs.gz)".

FillOptionsDescription()

void vtkMRMLFileIOHandler::FillOptionsDescription	(	vtkMRMLIOProperties *	properties,
		vtkMRMLIOOptionsDescription *	description )

Fill the description of options for the specified context (properties may be nullptr). Sets properties and defaults in the description, then calls GetOptionsDescription().

GetClassName()

virtual const char * vtkMRMLFileIOHandler::GetClassName ( )

virtual

Reimplemented in vtkMRMLFileReader, vtkMRMLFileWriter, vtkMRMLNodeWriter, vtkMRMLSceneBundleReader, vtkSlicerAnnotationsReader, vtkSlicerColorsReader, vtkSlicerMarkupsReader, vtkSlicerMarkupsWriter, vtkSlicerModelsReader, vtkSlicerSceneReader, vtkSlicerSceneWriter, vtkSlicerScriptedFileReaderBridge, vtkSlicerScriptedFileWriterBridge, vtkSlicerSegmentationsNodeWriter, vtkSlicerSegmentationsReader, vtkSlicerSequencesReader, vtkSlicerShaderPropertyReader, vtkSlicerTablesReader, vtkSlicerTerminologiesReader, vtkSlicerTextsReader, vtkSlicerTransformsReader, vtkSlicerVolumeRenderingReader, and vtkSlicerVolumesReader.

GetDescription()

virtual std::string vtkMRMLFileIOHandler::GetDescription ( )

virtual

What to call this in a file dialog ("Volume", "Mimics project").

GetExtensions()

const std::vector< std::string > & vtkMRMLFileIOHandler::GetExtensions ( ) const

inline

The extensions of the name filters, lower case and with the dot: ".mcs", ".mcs.gz". A filter of "*.*" or "*" gives no extension: such a handler takes any file.

Definition at line 63 of file vtkMRMLFileIOHandler.h.

GetFileIOManager()

vtkMRMLFileIOManager * vtkMRMLFileIOHandler::GetFileIOManager

(

)

const

The manager this handler is registered in (set by the manager), nullptr if it is not registered. It allows readers and writers to update application-wide IO settings, such as the default scene file type.

GetFileType()

virtual std::string vtkMRMLFileIOHandler::GetFileType ( )

virtual

The kind of file this handles, as the rest of Slicer names it ("VolumeFile", "ModelFile", "SceneFile", or whatever a module calls its own).

GetMatchedExtension()

virtual std::string vtkMRMLFileIOHandler::GetMatchedExtension ( const std::string & filePath ) const

virtual

The longest matching extension of filePath, or an empty string.

GetMatchingNameFilters()

static std::vector< std::string > vtkMRMLFileIOHandler::GetMatchingNameFilters ( const std::string & filePath, const std::vector< std::string > & nameFilters, bool requireReadableFile, int * longestExtensionMatch = nullptr )

static

Return the name filters that the file name matches. For example, if the file name is "my_image.nrrd" and the name filters are "Volumes (*.mha *.nrrd *.raw)", "Images (*.png *.jpg)", "DICOM (*)" then it returns "Volumes (*.mha *.nrrd *.raw)" and "DICOM (*)". If ␇ requireReadableFile is true then no filters are returned if the file is not a readable file (or it is a temporary file, with '~' in its extension).

Parameters

longestExtensionMatch

If non-zero then it is set to the length of the longest matched extension (not counting wildcard characters). It can be used to determine how specifically extension matched.

GetNameFilters()

const std::vector< std::string > & vtkMRMLFileIOHandler::GetNameFilters ( ) const

inline

Definition at line 59 of file vtkMRMLFileIOHandler.h.

GetOptionDefaults()

vtkMRMLIOProperties * vtkMRMLFileIOHandler::GetOptionDefaults

(

)

Default values of options that the application specifies (for example, from user settings). These values are used instead of the defaults of the reader or writer. Never null.

GetOptionsDescription()

virtual void vtkMRMLFileIOHandler::GetOptionsDescription ( vtkMRMLIOOptionsDescription * description )

virtual

Options of the reader or writer (properties that the user may set). See https://slicer.readthedocs.io/en/latest/developer_guide/mrml_overview.html#reader-and-writer-options Describe the options. The default implementation describes no options. Properties (context and current values) and defaults are already set in the description.

Reimplemented in vtkMRMLNodeWriter, vtkSlicerAnnotationsReader, vtkSlicerModelsReader, vtkSlicerSceneReader, vtkSlicerScriptedFileReaderBridge, vtkSlicerScriptedFileWriterBridge, vtkSlicerSegmentationsNodeWriter, vtkSlicerSegmentationsReader, and vtkSlicerVolumesReader.

GetOptionsDescriptionJSON()

std::string vtkMRMLFileIOHandler::GetOptionsDescriptionJSON

(

vtkMRMLIOProperties *

properties

)

Get the description of options as JSON (see vtkMRMLIOOptionsDescription). Returns an empty string if the reader or writer has no options.

GetOptionValues()

void vtkMRMLFileIOHandler::GetOptionValues	(	vtkMRMLIOProperties *	properties,
		vtkMRMLIOProperties *	values )

Get the values of all options for the specified context (default values, overridden by values in properties). It can be used for getting option values without displaying a user interface.

GetScene()

vtkMRMLScene * vtkMRMLFileIOHandler::GetScene

(

)

const

GetUserMessages()

vtkMRMLMessageCollection * vtkMRMLFileIOHandler::GetUserMessages

(

)

const

Messages the user should see about the last read or write (a vtkMRMLMessageCollection, as the readers of Slicer use). Never null.

IsA()

virtual int vtkMRMLFileIOHandler::IsA ( const char * type )

virtual

Reimplemented in vtkMRMLFileReader, vtkMRMLFileWriter, vtkMRMLNodeWriter, vtkMRMLSceneBundleReader, vtkSlicerAnnotationsReader, vtkSlicerColorsReader, vtkSlicerMarkupsReader, vtkSlicerMarkupsWriter, vtkSlicerModelsReader, vtkSlicerSceneReader, vtkSlicerSceneWriter, vtkSlicerScriptedFileReaderBridge, vtkSlicerScriptedFileWriterBridge, vtkSlicerSegmentationsNodeWriter, vtkSlicerSegmentationsReader, vtkSlicerSequencesReader, vtkSlicerShaderPropertyReader, vtkSlicerTablesReader, vtkSlicerTerminologiesReader, vtkSlicerTextsReader, vtkSlicerTransformsReader, vtkSlicerVolumeRenderingReader, and vtkSlicerVolumesReader.

IsTypeOf()

static int vtkMRMLFileIOHandler::IsTypeOf ( const char * type )

static

IsWriter()

virtual bool vtkMRMLFileIOHandler::IsWriter ( ) const

inlinevirtual

Whether this writes rather than reads.

Reimplemented in vtkMRMLFileWriter.

Definition at line 80 of file vtkMRMLFileIOHandler.h.

LongestMatchingExtension()

static std::string vtkMRMLFileIOHandler::LongestMatchingExtension ( const std::string & filePath, const std::vector< std::string > & extensions )

static

The lower-case extension of a file name, taking the compound extensions of Slicer into account (".seg.nrrd" rather than ".nrrd"), against a list of known extensions.

MatchesExtension()

virtual bool vtkMRMLFileIOHandler::MatchesExtension ( const std::string & filePath ) const

virtual

Whether the file name ends in one of the extensions. A handler with no extension of its own matches nothing here; it has to say what it can do in CanLoadFileConfidence instead.

NameFilterToWildcards()

static std::vector< std::string > vtkMRMLFileIOHandler::NameFilterToWildcards ( const std::string & nameFilter )

static

Get the list of wildcard patterns from a name filter. For example: "Image (*.jpg *.png)" -> "*.jpg", "*.png". A name filter without brackets is returned as is if it is a valid wildcard ("*.jpg").

New()

static vtkMRMLFileIOHandler * vtkMRMLFileIOHandler::New ( )

static

PrintSelf()

void vtkMRMLFileIOHandler::PrintSelf ( ostream & os, vtkIndent indent )

override

SafeDownCast()

static vtkMRMLFileIOHandler * vtkMRMLFileIOHandler::SafeDownCast ( vtkObject * o )

static

SetDescription()

virtual void vtkMRMLFileIOHandler::SetDescription ( std::string )

virtual

SetFileIOManager()

void vtkMRMLFileIOHandler::SetFileIOManager

(

vtkMRMLFileIOManager *

manager

)

SetFileType()

virtual void vtkMRMLFileIOHandler::SetFileType ( std::string )

virtual

SetNameFilters()

void vtkMRMLFileIOHandler::SetNameFilters

(

const std::vector< std::string > &

filters

)

The name filters, as Slicer writes them: "Mimics project (*.mcs *.mcs.gz)".

SetScene()

virtual void vtkMRMLFileIOHandler::SetScene ( vtkMRMLScene * scene )

virtual

Where the nodes go, and where messages for the user are collected.

WildcardMatch()

static bool vtkMRMLFileIOHandler::WildcardMatch ( const std::string & pattern, const std::string & text )

static

Case-insensitive wildcard matching of the whole text. Supported wildcards: '*', '?', and character sets ("[abc]", "[!abc]").

Member Data Documentation

Description

std::string vtkMRMLFileIOHandler::Description

protected

Definition at line 142 of file vtkMRMLFileIOHandler.h.

Extensions

std::vector<std::string> vtkMRMLFileIOHandler::Extensions

protected

Definition at line 144 of file vtkMRMLFileIOHandler.h.

FileIOManager

vtkWeakPointer<vtkMRMLFileIOManager> vtkMRMLFileIOHandler::FileIOManager

protected

Definition at line 146 of file vtkMRMLFileIOHandler.h.

FileType

std::string vtkMRMLFileIOHandler::FileType

protected

Definition at line 141 of file vtkMRMLFileIOHandler.h.

NameFilters

std::vector<std::string> vtkMRMLFileIOHandler::NameFilters

protected

Definition at line 143 of file vtkMRMLFileIOHandler.h.

OptionDefaults

vtkNew<vtkMRMLIOProperties> vtkMRMLFileIOHandler::OptionDefaults

protected

Definition at line 147 of file vtkMRMLFileIOHandler.h.

Scene

vtkWeakPointer<vtkMRMLScene> vtkMRMLFileIOHandler::Scene

protected

Definition at line 145 of file vtkMRMLFileIOHandler.h.

UserMessages

vtkNew<vtkMRMLMessageCollection> vtkMRMLFileIOHandler::UserMessages

protected

Definition at line 148 of file vtkMRMLFileIOHandler.h.

---

The documentation for this class was generated from the following file:

• Libs/MRML/Logic/vtkMRMLFileIOHandler.h
