#include <Libs/MRML/Logic/vtkMRMLFileReader.h>

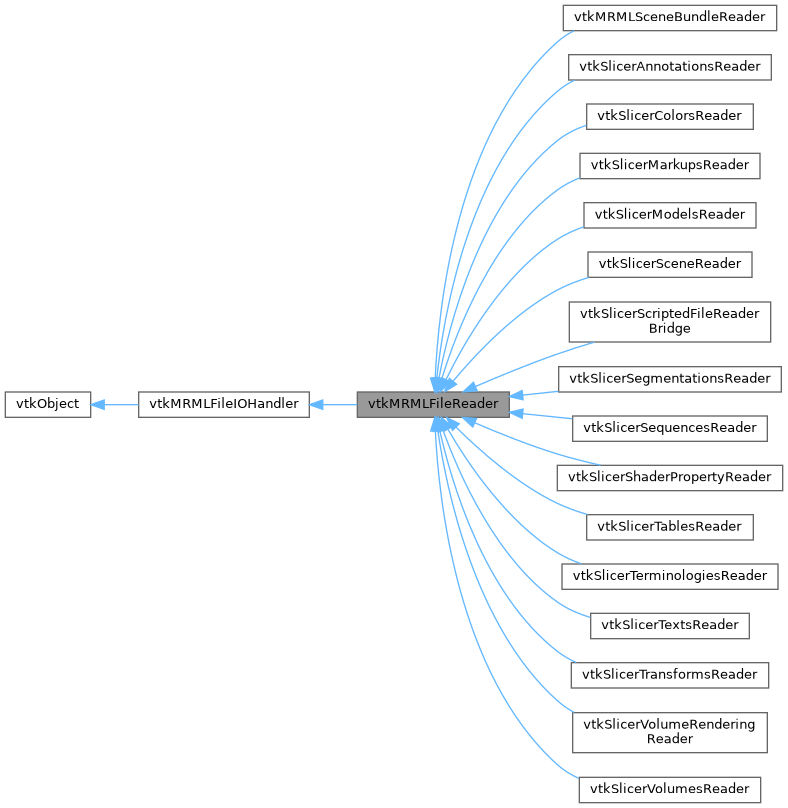

Inheritance diagram for vtkMRMLFileReader:

[legend]

Collaboration diagram for vtkMRMLFileReader:

[legend]

Public Types
typedef vtkMRMLFileIOHandler	Superclass

Public Types inherited from vtkMRMLFileIOHandler
typedef vtkObject	Superclass

Public Member Functions
void	AddLoadedNodeID (const std::string &nodeID)

virtual bool	CanLoadFile (const std::string &filePath)

virtual double	CanLoadFileConfidence (const std::string &filePath)

void	ClearLoadedNodeIDs ()

virtual std::string	ExamineFileList (std::vector< std::string > &fileList, vtkMRMLIOProperties *ioProperties)

virtual double	ExamineFileListConfidence (std::vector< std::string > &fileList, vtkMRMLIOProperties *ioProperties)

virtual const char *	GetClassName ()

virtual double	GetConfidenceForMatchingExtension ()

const std::vector< std::string > &	GetLoadedNodeIDs () const
	The nodes the last Load added, by node ID.

std::vector< std::string >	GetSupportedNameFilters (const std::string &filePath)

std::vector< std::string >	GetSupportedNameFilters (const std::string &filePath, int &longestExtensionMatch)

virtual int	IsA (const char *type)

virtual bool	Load (vtkMRMLIOProperties *properties)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetConfidenceForMatchingExtension (double)

void	SetLoadedNodeIDs (const std::vector< std::string > &nodeIDs)

Public Member Functions inherited from vtkMRMLFileIOHandler
void	FillOptionsDescription (vtkMRMLIOProperties properties, vtkMRMLIOOptionsDescription description)

virtual std::string	GetDescription ()
	What to call this in a file dialog ("Volume", "Mimics project").

const std::vector< std::string > &	GetExtensions () const

vtkMRMLFileIOManager *	GetFileIOManager () const

virtual std::string	GetFileType ()

virtual std::string	GetMatchedExtension (const std::string &filePath) const
	The longest matching extension of filePath, or an empty string.

const std::vector< std::string > &	GetNameFilters () const

vtkMRMLIOProperties *	GetOptionDefaults ()

virtual void	GetOptionsDescription (vtkMRMLIOOptionsDescription *description)

std::string	GetOptionsDescriptionJSON (vtkMRMLIOProperties *properties)

void	GetOptionValues (vtkMRMLIOProperties properties, vtkMRMLIOProperties values)

vtkMRMLScene *	GetScene () const

vtkMRMLMessageCollection *	GetUserMessages () const

virtual bool	IsWriter () const
	Whether this writes rather than reads.

virtual bool	MatchesExtension (const std::string &filePath) const

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetDescription (std::string)

void	SetFileIOManager (vtkMRMLFileIOManager *manager)

virtual void	SetFileType (std::string)

void	SetNameFilters (const std::vector< std::string > &filters)
	The name filters, as Slicer writes them: "Mimics project (.mcs .mcs.gz)".

virtual void	SetScene (vtkMRMLScene *scene)
	Where the nodes go, and where messages for the user are collected.

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkMRMLFileReader *	New ()

static vtkMRMLFileReader *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkMRMLFileIOHandler
static std::vector< std::string >	ExtensionsFromNameFilter (const std::string &nameFilter)
	The extensions named by a filter such as "Mimics project (.mcs .mcs.gz)".

static std::vector< std::string >	GetMatchingNameFilters (const std::string &filePath, const std::vector< std::string > &nameFilters, bool requireReadableFile, int *longestExtensionMatch=nullptr)

static int	IsTypeOf (const char *type)

static std::string	LongestMatchingExtension (const std::string &filePath, const std::vector< std::string > &extensions)

static std::vector< std::string >	NameFilterToWildcards (const std::string &nameFilter)

static vtkMRMLFileIOHandler *	New ()

static vtkMRMLFileIOHandler *	SafeDownCast (vtkObject *o)

static bool	WildcardMatch (const std::string &pattern, const std::string &text)
	Case-insensitive wildcard matching of the whole text. Supported wildcards: '*', '?', and character sets ("[abc]", "[!abc]").

Protected Member Functions
	vtkMRMLFileReader ()

	~vtkMRMLFileReader () override

Protected Member Functions inherited from vtkMRMLFileIOHandler
	vtkMRMLFileIOHandler ()

	~vtkMRMLFileIOHandler () override

Static Protected Member Functions
static bool	EndsWithNoCase (const std::string &text, const std::string &suffix)
	Returns true if the string ends with the suffix (case-insensitive).

static std::string	ReadFileHeader (const std::string &filePath, size_t maxLength)

Protected Attributes
double	ConfidenceForMatchingExtension { 0.5 }

std::vector< std::string >	LoadedNodeIDs

Protected Attributes inherited from vtkMRMLFileIOHandler
std::string	Description

std::vector< std::string >	Extensions

vtkWeakPointer< vtkMRMLFileIOManager >	FileIOManager

std::string	FileType

std::vector< std::string >	NameFilters

vtkNew< vtkMRMLIOProperties >	OptionDefaults

vtkWeakPointer< vtkMRMLScene >	Scene

vtkNew< vtkMRMLMessageCollection >	UserMessages

Detailed Description

Base class of file readers, which read files into the scene. Subclasses override Load() and, if the file extension is not enough to decide if the file can be loaded, CanLoadFileConfidence().

See https://slicer.readthedocs.io/en/latest/developer_guide/mrml_overview.html#the-reader

Definition at line 30 of file vtkMRMLFileReader.h.

Member Typedef Documentation

◆ Superclass

typedef vtkMRMLFileIOHandler vtkMRMLFileReader::Superclass

Definition at line 34 of file vtkMRMLFileReader.h.

Constructor & Destructor Documentation

◆ vtkMRMLFileReader()

vtkMRMLFileReader::vtkMRMLFileReader ( )

protected

◆ ~vtkMRMLFileReader()

vtkMRMLFileReader::~vtkMRMLFileReader ( )

overrideprotected

Member Function Documentation

◆ AddLoadedNodeID()

void vtkMRMLFileReader::AddLoadedNodeID ( const std::string & nodeID )

◆ CanLoadFile()

virtual bool vtkMRMLFileReader::CanLoadFile ( const std::string & filePath )

virtual

Returns true if the reader can load this file. Default implementation is a simple and fast, it just checks if file extension matches any of the name filters.

Reimplemented in vtkSlicerScriptedFileReaderBridge.

◆ CanLoadFileConfidence()

virtual double vtkMRMLFileReader::CanLoadFileConfidence ( const std::string & filePath )

virtual

Returns a positive number (>0) if the reader can load this file. The higher the returned value is the more confident the reader it is the most suitable class to load the file. By default, the method calls CanLoadFile and if it returns true then the returned confidence value is ConfidenceForMatchingExtension (0.5 by default)

0.01 * matchedFileExtensionLength. The additional confidence for longer matched file extensions allow prioritization of more specific readers. For example, "*.seg.nrrd" is more specific than "*.nrrd"; "*.nrrd" is more specific than "*.*".

Reimplemented in vtkSlicerColorsReader, vtkSlicerMarkupsReader, vtkSlicerModelsReader, vtkSlicerScriptedFileReaderBridge, vtkSlicerSegmentationsReader, vtkSlicerSequencesReader, vtkSlicerTablesReader, vtkSlicerTerminologiesReader, vtkSlicerTransformsReader, and vtkSlicerVolumesReader.

◆ ClearLoadedNodeIDs()

void vtkMRMLFileReader::ClearLoadedNodeIDs ( )

◆ EndsWithNoCase()

static bool vtkMRMLFileReader::EndsWithNoCase	(	const std::string &	text,
		const std::string &	suffix )

staticprotected

Returns true if the string ends with the suffix (case-insensitive).

◆ ExamineFileList()

virtual std::string vtkMRMLFileReader::ExamineFileList	(	std::vector< std::string > &	fileList,
		vtkMRMLIOProperties *	ioProperties )

virtual

Examine the list of files to see if there is an entry that can serve as an archetype for loading multiple files. If so, the reader removes the recognized files (except the archetype) from the list, sets the ioProperties so that the reader will read these files, and returns the archetype file path. If no pattern is recognized then the method returns an empty string. The specific motivating use case is when the file list contains a set of related files, such as a list of image files that are recognized as a volume. This method is kept for backward compatibility, readers should override ExamineFileListConfidence() instead (similarly to CanLoadFile() and CanLoadFileConfidence()).

Reimplemented in vtkSlicerScriptedFileReaderBridge, and vtkSlicerVolumesReader.

◆ ExamineFileListConfidence()

virtual double vtkMRMLFileReader::ExamineFileListConfidence	(	std::vector< std::string > &	fileList,
		vtkMRMLIOProperties *	ioProperties )

virtual

Examine the list of files to see if there is an entry that can serve as an archetype for loading multiple files. If so, the reader removes the recognized files (except the archetype) from the list, sets the ioProperties so that the reader will read these files (including the "fileName" property, which is set to the archetype file path), and returns the confidence (between 0.0 and 1.0) that the reader can load the group of files. If no pattern is recognized then the method returns 0.0. If multiple readers recognize a group of files then the file IO manager uses the one with the highest confidence. The default implementation calls ExamineFileList() and returns the confidence that the reader can load the archetype file (CanLoadFileConfidence).

Reimplemented in vtkSlicerScriptedFileReaderBridge.

◆ GetClassName()

virtual const char * vtkMRMLFileReader::GetClassName ( )

virtual

Reimplemented from vtkMRMLFileIOHandler.

Reimplemented in vtkMRMLSceneBundleReader, vtkSlicerAnnotationsReader, vtkSlicerColorsReader, vtkSlicerMarkupsReader, vtkSlicerModelsReader, vtkSlicerSceneReader, vtkSlicerScriptedFileReaderBridge, vtkSlicerSegmentationsReader, vtkSlicerSequencesReader, vtkSlicerShaderPropertyReader, vtkSlicerTablesReader, vtkSlicerTerminologiesReader, vtkSlicerTextsReader, vtkSlicerTransformsReader, vtkSlicerVolumeRenderingReader, and vtkSlicerVolumesReader.

◆ GetConfidenceForMatchingExtension()

virtual double vtkMRMLFileReader::GetConfidenceForMatchingExtension ( )

virtual

Confidence value returned by the default CanLoadFileConfidence implementation when the file matches one of the name filters. A small value is added for longer matched extensions.

◆ GetLoadedNodeIDs()

const std::vector< std::string > & vtkMRMLFileReader::GetLoadedNodeIDs ( ) const

The nodes the last Load added, by node ID.

◆ GetSupportedNameFilters() [1/2]

std::vector< std::string > vtkMRMLFileReader::GetSupportedNameFilters ( const std::string & filePath )

Return the name filters that match the file. For example, if the file name is "my_image.nrrd" and the supported name filters are "Volumes (*.mha *.nrrd *.raw)", "Images (*.png *.jpg)", "DICOM (*)" then it returns "Volumes (*.mha *.nrrd *.raw)" and "DICOM (*)". No name filters are returned if the file is not a readable file.

◆ GetSupportedNameFilters() [2/2]

std::vector< std::string > vtkMRMLFileReader::GetSupportedNameFilters	(	const std::string &	filePath,
		int &	longestExtensionMatch )

Same as GetSupportedNameFilters(filePath) but it also returns the length of the longest matched extension in longestExtensionMatch (it can be used to determine how specifically extension matched).

◆ IsA()

virtual int vtkMRMLFileReader::IsA ( const char * type )

virtual

Reimplemented from vtkMRMLFileIOHandler.

Reimplemented in vtkMRMLSceneBundleReader, vtkSlicerAnnotationsReader, vtkSlicerColorsReader, vtkSlicerMarkupsReader, vtkSlicerModelsReader, vtkSlicerSceneReader, vtkSlicerScriptedFileReaderBridge, vtkSlicerSegmentationsReader, vtkSlicerSequencesReader, vtkSlicerShaderPropertyReader, vtkSlicerTablesReader, vtkSlicerTerminologiesReader, vtkSlicerTextsReader, vtkSlicerTransformsReader, vtkSlicerVolumeRenderingReader, and vtkSlicerVolumesReader.

◆ IsTypeOf()

static int vtkMRMLFileReader::IsTypeOf ( const char * type )

static

◆ Load()

virtual bool vtkMRMLFileReader::Load ( vtkMRMLIOProperties * properties )

virtual

Read the file specified by the "fileName" property into the scene. Loaded nodes are reported by AddLoadedNodeID(). Returns true on success. The base class reads nothing and returns false.

Reimplemented in vtkMRMLSceneBundleReader, vtkSlicerAnnotationsReader, vtkSlicerColorsReader, vtkSlicerMarkupsReader, vtkSlicerModelsReader, vtkSlicerSceneReader, vtkSlicerScriptedFileReaderBridge, vtkSlicerSegmentationsReader, vtkSlicerSequencesReader, vtkSlicerShaderPropertyReader, vtkSlicerTablesReader, vtkSlicerTerminologiesReader, vtkSlicerTextsReader, vtkSlicerTransformsReader, vtkSlicerVolumeRenderingReader, and vtkSlicerVolumesReader.

◆ New()

static vtkMRMLFileReader * vtkMRMLFileReader::New ( )

static

◆ PrintSelf()

void vtkMRMLFileReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent )

override

◆ ReadFileHeader()

static std::string vtkMRMLFileReader::ReadFileHeader	(	const std::string &	filePath,
		size_t	maxLength )

staticprotected

Read the first maxLength characters of a text file (to inspect a file header). Returns empty string if the file cannot be read.

◆ SafeDownCast()

static vtkMRMLFileReader * vtkMRMLFileReader::SafeDownCast ( vtkObject * o )

static

◆ SetConfidenceForMatchingExtension()

virtual void vtkMRMLFileReader::SetConfidenceForMatchingExtension ( double )

virtual

◆ SetLoadedNodeIDs()

void vtkMRMLFileReader::SetLoadedNodeIDs ( const std::vector< std::string > & nodeIDs )

Member Data Documentation

◆ ConfidenceForMatchingExtension

double vtkMRMLFileReader::ConfidenceForMatchingExtension { 0.5 }

protected

Definition at line 109 of file vtkMRMLFileReader.h.

◆ LoadedNodeIDs

std::vector<std::string> vtkMRMLFileReader::LoadedNodeIDs

protected

Definition at line 110 of file vtkMRMLFileReader.h.

The documentation for this class was generated from the following file:

Libs/MRML/Logic/vtkMRMLFileReader.h
