#include <Libs/MRML/Logic/vtkMRMLFileWriter.h>

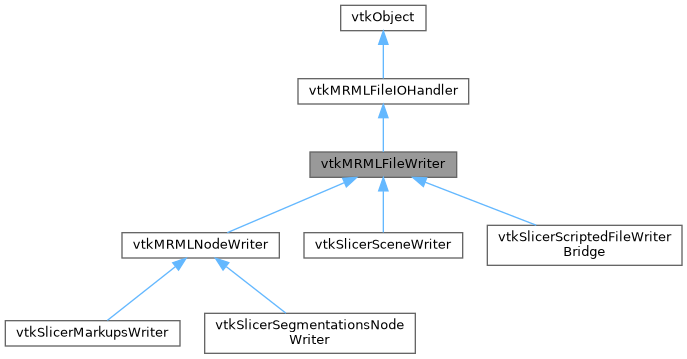

Inheritance diagram for vtkMRMLFileWriter:

[legend]

Collaboration diagram for vtkMRMLFileWriter:

[legend]

Public Types
typedef vtkMRMLFileIOHandler	Superclass

Public Types inherited from vtkMRMLFileIOHandler
typedef vtkObject	Superclass

Public Member Functions
void	AddNodeClassName (const std::string &className)

void	AddWrittenNodeID (const std::string &nodeID)

virtual bool	CanWriteObject (vtkObject *object)

virtual double	CanWriteObjectConfidence (vtkObject *object)

void	ClearWrittenNodeIDs ()

virtual const char *	GetClassName ()

virtual double	GetConfidenceForMatchingClass ()
	What a writer that only knows its node class answers for a node of that class.

virtual std::vector< std::string >	GetNameFiltersForObject (vtkObject *object)

std::string	GetNodeClassName () const

const std::vector< std::string > &	GetNodeClassNames () const

const std::vector< std::string > &	GetWrittenNodeIDs () const
	The nodes the last Write wrote, by node ID.

virtual int	IsA (const char *type)

bool	IsWriter () const override
	Whether this writes rather than reads.

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetConfidenceForMatchingClass (double)

void	SetNodeClassName (const std::string &className)

void	SetNodeClassNames (const std::vector< std::string > &classNames)
	The classes of nodes this writer is for.

void	SetWrittenNodeIDs (const std::vector< std::string > &nodeIDs)

virtual bool	Write (vtkMRMLIOProperties *properties)

Public Member Functions inherited from vtkMRMLFileIOHandler
void	FillOptionsDescription (vtkMRMLIOProperties properties, vtkMRMLIOOptionsDescription description)

virtual std::string	GetDescription ()
	What to call this in a file dialog ("Volume", "Mimics project").

const std::vector< std::string > &	GetExtensions () const

vtkMRMLFileIOManager *	GetFileIOManager () const

virtual std::string	GetFileType ()

virtual std::string	GetMatchedExtension (const std::string &filePath) const
	The longest matching extension of filePath, or an empty string.

const std::vector< std::string > &	GetNameFilters () const

vtkMRMLIOProperties *	GetOptionDefaults ()

virtual void	GetOptionsDescription (vtkMRMLIOOptionsDescription *description)

std::string	GetOptionsDescriptionJSON (vtkMRMLIOProperties *properties)

void	GetOptionValues (vtkMRMLIOProperties properties, vtkMRMLIOProperties values)

vtkMRMLScene *	GetScene () const

vtkMRMLMessageCollection *	GetUserMessages () const

virtual bool	MatchesExtension (const std::string &filePath) const

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetDescription (std::string)

void	SetFileIOManager (vtkMRMLFileIOManager *manager)

virtual void	SetFileType (std::string)

void	SetNameFilters (const std::vector< std::string > &filters)
	The name filters, as Slicer writes them: "Mimics project (.mcs .mcs.gz)".

virtual void	SetScene (vtkMRMLScene *scene)
	Where the nodes go, and where messages for the user are collected.

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkMRMLFileWriter *	New ()

static vtkMRMLFileWriter *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkMRMLFileIOHandler
static std::vector< std::string >	ExtensionsFromNameFilter (const std::string &nameFilter)
	The extensions named by a filter such as "Mimics project (.mcs .mcs.gz)".

static std::vector< std::string >	GetMatchingNameFilters (const std::string &filePath, const std::vector< std::string > &nameFilters, bool requireReadableFile, int *longestExtensionMatch=nullptr)

static int	IsTypeOf (const char *type)

static std::string	LongestMatchingExtension (const std::string &filePath, const std::vector< std::string > &extensions)

static std::vector< std::string >	NameFilterToWildcards (const std::string &nameFilter)

static vtkMRMLFileIOHandler *	New ()

static vtkMRMLFileIOHandler *	SafeDownCast (vtkObject *o)

static bool	WildcardMatch (const std::string &pattern, const std::string &text)
	Case-insensitive wildcard matching of the whole text. Supported wildcards: '*', '?', and character sets ("[abc]", "[!abc]").

Protected Member Functions
	vtkMRMLFileWriter ()

	~vtkMRMLFileWriter () override

Protected Member Functions inherited from vtkMRMLFileIOHandler
	vtkMRMLFileIOHandler ()

	~vtkMRMLFileIOHandler () override

Protected Attributes
double	ConfidenceForMatchingClass { 0.5 }

std::vector< std::string >	NodeClassNames

std::vector< std::string >	WrittenNodeIDs

Protected Attributes inherited from vtkMRMLFileIOHandler
std::string	Description

std::vector< std::string >	Extensions

vtkWeakPointer< vtkMRMLFileIOManager >	FileIOManager

std::string	FileType

std::vector< std::string >	NameFilters

vtkNew< vtkMRMLIOProperties >	OptionDefaults

vtkWeakPointer< vtkMRMLScene >	Scene

vtkNew< vtkMRMLMessageCollection >	UserMessages

Detailed Description

Base class of file writers, which write a node (or the scene) to file. Subclasses override Write() and, if checking the node class is not enough to decide if the object can be written, CanWriteObjectConfidence().

See https://slicer.readthedocs.io/en/latest/developer_guide/mrml_overview.html#the-writer

Definition at line 30 of file vtkMRMLFileWriter.h.

Member Typedef Documentation

◆ Superclass

typedef vtkMRMLFileIOHandler vtkMRMLFileWriter::Superclass

Definition at line 34 of file vtkMRMLFileWriter.h.

Constructor & Destructor Documentation

◆ vtkMRMLFileWriter()

vtkMRMLFileWriter::vtkMRMLFileWriter ( )

protected

◆ ~vtkMRMLFileWriter()

vtkMRMLFileWriter::~vtkMRMLFileWriter ( )

overrideprotected

Member Function Documentation

◆ AddNodeClassName()

void vtkMRMLFileWriter::AddNodeClassName ( const std::string & className )

◆ AddWrittenNodeID()

void vtkMRMLFileWriter::AddWrittenNodeID ( const std::string & nodeID )

◆ CanWriteObject()

virtual bool vtkMRMLFileWriter::CanWriteObject ( vtkObject * object )

virtual

Return true if the object is handled by the writer. By default it returns true if the object is an instance of any of the node class names.

Reimplemented in vtkMRMLNodeWriter, vtkSlicerSceneWriter, and vtkSlicerScriptedFileWriterBridge.

◆ CanWriteObjectConfidence()

virtual double vtkMRMLFileWriter::CanWriteObjectConfidence ( vtkObject * object )

virtual

Returns a positive number (>0) if the writer can write the object to file. The higher the returned value is the more confident the writer it is the most suitable class to write the object. By default, the method calls CanWriteObject and if it returns true then it returns ConfidenceForMatchingClass (0.5 by default).

Reimplemented in vtkSlicerScriptedFileWriterBridge.

◆ ClearWrittenNodeIDs()

void vtkMRMLFileWriter::ClearWrittenNodeIDs ( )

◆ GetClassName()

virtual const char * vtkMRMLFileWriter::GetClassName ( )

virtual

Reimplemented from vtkMRMLFileIOHandler.

Reimplemented in vtkMRMLNodeWriter, vtkSlicerMarkupsWriter, vtkSlicerSceneWriter, vtkSlicerScriptedFileWriterBridge, and vtkSlicerSegmentationsNodeWriter.

◆ GetConfidenceForMatchingClass()

virtual double vtkMRMLFileWriter::GetConfidenceForMatchingClass ( )

virtual

What a writer that only knows its node class answers for a node of that class.

◆ GetNameFiltersForObject()

virtual std::vector< std::string > vtkMRMLFileWriter::GetNameFiltersForObject ( vtkObject * object )

virtual

Get the list of name filters supported for writing a particular object. Example: "Image (*.jpg *.png *.tiff)", "Model (.vtk)". By default, it returns the name filters of the writer (see SetNameFilters()).

Reimplemented in vtkMRMLNodeWriter, vtkSlicerMarkupsWriter, and vtkSlicerScriptedFileWriterBridge.

◆ GetNodeClassName()

std::string vtkMRMLFileWriter::GetNodeClassName ( ) const

The class of node this writer is for ("vtkMRMLTextNode"). Setting it replaces all node class names with this single class name. Empty for a writer that decides for itself in CanWriteObjectConfidence.

◆ GetNodeClassNames()

const std::vector< std::string > & vtkMRMLFileWriter::GetNodeClassNames ( ) const

inline

Definition at line 74 of file vtkMRMLFileWriter.h.

◆ GetWrittenNodeIDs()

const std::vector< std::string > & vtkMRMLFileWriter::GetWrittenNodeIDs ( ) const

The nodes the last Write wrote, by node ID.

◆ IsA()

virtual int vtkMRMLFileWriter::IsA ( const char * type )

virtual

Reimplemented from vtkMRMLFileIOHandler.

Reimplemented in vtkMRMLNodeWriter, vtkSlicerMarkupsWriter, vtkSlicerSceneWriter, vtkSlicerScriptedFileWriterBridge, and vtkSlicerSegmentationsNodeWriter.

◆ IsTypeOf()

static int vtkMRMLFileWriter::IsTypeOf ( const char * type )

static

◆ IsWriter()

bool vtkMRMLFileWriter::IsWriter ( ) const

inlineoverridevirtual

Whether this writes rather than reads.

Reimplemented from vtkMRMLFileIOHandler.

Definition at line 37 of file vtkMRMLFileWriter.h.

◆ New()

static vtkMRMLFileWriter * vtkMRMLFileWriter::New ( )

static

◆ PrintSelf()

void vtkMRMLFileWriter::PrintSelf	(	ostream &	os,
		vtkIndent	indent )

override

◆ SafeDownCast()

static vtkMRMLFileWriter * vtkMRMLFileWriter::SafeDownCast ( vtkObject * o )

static

◆ SetConfidenceForMatchingClass()

virtual void vtkMRMLFileWriter::SetConfidenceForMatchingClass ( double )

virtual

◆ SetNodeClassName()

void vtkMRMLFileWriter::SetNodeClassName ( const std::string & className )

◆ SetNodeClassNames()

void vtkMRMLFileWriter::SetNodeClassNames ( const std::vector< std::string > & classNames )

The classes of nodes this writer is for.

◆ SetWrittenNodeIDs()

void vtkMRMLFileWriter::SetWrittenNodeIDs ( const std::vector< std::string > & nodeIDs )

◆ Write()

virtual bool vtkMRMLFileWriter::Write ( vtkMRMLIOProperties * properties )

virtual

Write the node named by the "nodeID" property to the file named by "fileName". What it wrote is then in GetWrittenNodeIDs. The base class writes nothing: a writer whose work is done elsewhere is called through its owner.

Reimplemented in vtkMRMLNodeWriter, vtkSlicerMarkupsWriter, vtkSlicerSceneWriter, vtkSlicerScriptedFileWriterBridge, and vtkSlicerSegmentationsNodeWriter.

Member Data Documentation

◆ ConfidenceForMatchingClass

double vtkMRMLFileWriter::ConfidenceForMatchingClass { 0.5 }

protected

Definition at line 86 of file vtkMRMLFileWriter.h.

◆ NodeClassNames

std::vector<std::string> vtkMRMLFileWriter::NodeClassNames

protected

Definition at line 85 of file vtkMRMLFileWriter.h.

◆ WrittenNodeIDs

std::vector<std::string> vtkMRMLFileWriter::WrittenNodeIDs

protected

Definition at line 87 of file vtkMRMLFileWriter.h.

The documentation for this class was generated from the following file:

Libs/MRML/Logic/vtkMRMLFileWriter.h
