#include <Libs/MRML/Logic/vtkMRMLNodeWriter.h>

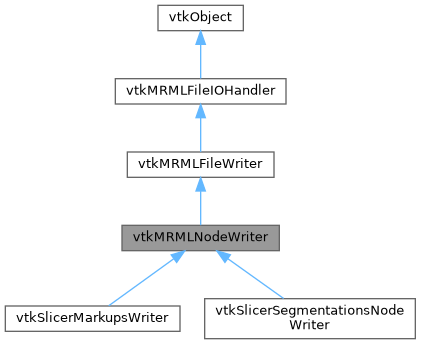

Inheritance diagram for vtkMRMLNodeWriter:

[legend]

Collaboration diagram for vtkMRMLNodeWriter:

[legend]

Public Types
typedef vtkMRMLFileWriter	Superclass

Public Types inherited from vtkMRMLFileWriter
typedef vtkMRMLFileIOHandler	Superclass

Public Types inherited from vtkMRMLFileIOHandler
typedef vtkObject	Superclass

Public Member Functions
bool	CanWriteObject (vtkObject *object) override
	Return true if the object is a storable node of any of the node class names.

virtual const char *	GetClassName ()

std::vector< std::string >	GetNameFiltersForObject (vtkObject *object) override

virtual vtkMRMLNode *	GetNodeByID (const std::string &id)
	Get node from the scene by node ID.

void	GetOptionsDescription (vtkMRMLIOOptionsDescription *description) override

virtual bool	GetSupportUseCompression ()
	Some storage nodes don't support the compression option.

virtual int	IsA (const char *type)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetSupportUseCompression (bool)

virtual void	SupportUseCompressionOff ()

virtual void	SupportUseCompressionOn ()

bool	Write (vtkMRMLIOProperties *properties) override

bool	WriteNode (vtkMRMLStorableNode node, vtkMRMLIOProperties properties)

Public Member Functions inherited from vtkMRMLFileWriter
void	AddNodeClassName (const std::string &className)

void	AddWrittenNodeID (const std::string &nodeID)

virtual double	CanWriteObjectConfidence (vtkObject *object)

void	ClearWrittenNodeIDs ()

virtual double	GetConfidenceForMatchingClass ()
	What a writer that only knows its node class answers for a node of that class.

std::string	GetNodeClassName () const

const std::vector< std::string > &	GetNodeClassNames () const

const std::vector< std::string > &	GetWrittenNodeIDs () const
	The nodes the last Write wrote, by node ID.

bool	IsWriter () const override
	Whether this writes rather than reads.

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetConfidenceForMatchingClass (double)

void	SetNodeClassName (const std::string &className)

void	SetNodeClassNames (const std::vector< std::string > &classNames)
	The classes of nodes this writer is for.

void	SetWrittenNodeIDs (const std::vector< std::string > &nodeIDs)

Public Member Functions inherited from vtkMRMLFileIOHandler
void	FillOptionsDescription (vtkMRMLIOProperties properties, vtkMRMLIOOptionsDescription description)

virtual std::string	GetDescription ()
	What to call this in a file dialog ("Volume", "Mimics project").

const std::vector< std::string > &	GetExtensions () const

vtkMRMLFileIOManager *	GetFileIOManager () const

virtual std::string	GetFileType ()

virtual std::string	GetMatchedExtension (const std::string &filePath) const
	The longest matching extension of filePath, or an empty string.

const std::vector< std::string > &	GetNameFilters () const

vtkMRMLIOProperties *	GetOptionDefaults ()

std::string	GetOptionsDescriptionJSON (vtkMRMLIOProperties *properties)

void	GetOptionValues (vtkMRMLIOProperties properties, vtkMRMLIOProperties values)

vtkMRMLScene *	GetScene () const

vtkMRMLMessageCollection *	GetUserMessages () const

virtual bool	MatchesExtension (const std::string &filePath) const

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetDescription (std::string)

void	SetFileIOManager (vtkMRMLFileIOManager *manager)

virtual void	SetFileType (std::string)

void	SetNameFilters (const std::vector< std::string > &filters)
	The name filters, as Slicer writes them: "Mimics project (.mcs .mcs.gz)".

virtual void	SetScene (vtkMRMLScene *scene)
	Where the nodes go, and where messages for the user are collected.

Static Public Member Functions
static vtkSmartPointer< vtkMRMLNodeWriter >	CreateNodeWriter (const std::string &description, const std::string &fileType, const std::vector< std::string > &nodeClassNames, bool supportUseCompression=true)

static int	IsTypeOf (const char *type)

static vtkMRMLNodeWriter *	New ()

static vtkMRMLNodeWriter *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkMRMLFileWriter
static int	IsTypeOf (const char *type)

static vtkMRMLFileWriter *	New ()

static vtkMRMLFileWriter *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkMRMLFileIOHandler
static std::vector< std::string >	ExtensionsFromNameFilter (const std::string &nameFilter)
	The extensions named by a filter such as "Mimics project (.mcs .mcs.gz)".

static std::vector< std::string >	GetMatchingNameFilters (const std::string &filePath, const std::vector< std::string > &nameFilters, bool requireReadableFile, int *longestExtensionMatch=nullptr)

static int	IsTypeOf (const char *type)

static std::string	LongestMatchingExtension (const std::string &filePath, const std::vector< std::string > &extensions)

static std::vector< std::string >	NameFilterToWildcards (const std::string &nameFilter)

static vtkMRMLFileIOHandler *	New ()

static vtkMRMLFileIOHandler *	SafeDownCast (vtkObject *o)

static bool	WildcardMatch (const std::string &pattern, const std::string &text)
	Case-insensitive wildcard matching of the whole text. Supported wildcards: '*', '?', and character sets ("[abc]", "[!abc]").

Protected Member Functions
	vtkMRMLNodeWriter ()

	~vtkMRMLNodeWriter () override

Protected Member Functions inherited from vtkMRMLFileWriter
	vtkMRMLFileWriter ()

	~vtkMRMLFileWriter () override

Protected Member Functions inherited from vtkMRMLFileIOHandler
	vtkMRMLFileIOHandler ()

	~vtkMRMLFileIOHandler () override

Protected Attributes
bool	SupportUseCompression { true }

Protected Attributes inherited from vtkMRMLFileWriter
double	ConfidenceForMatchingClass { 0.5 }

std::vector< std::string >	NodeClassNames

std::vector< std::string >	WrittenNodeIDs

Protected Attributes inherited from vtkMRMLFileIOHandler
std::string	Description

std::vector< std::string >	Extensions

vtkWeakPointer< vtkMRMLFileIOManager >	FileIOManager

std::string	FileType

std::vector< std::string >	NameFilters

vtkNew< vtkMRMLIOProperties >	OptionDefaults

vtkWeakPointer< vtkMRMLScene >	Scene

vtkNew< vtkMRMLMessageCollection >	UserMessages

Detailed Description

Writer that is ready to use for most of the nodes: it writes a storable node using its storage node.

qSlicerNodeWriter is the Qt interface of this class, kept for backward compatibility.

Definition at line 32 of file vtkMRMLNodeWriter.h.

Member Typedef Documentation

◆ Superclass

typedef vtkMRMLFileWriter vtkMRMLNodeWriter::Superclass

Definition at line 36 of file vtkMRMLNodeWriter.h.

Constructor & Destructor Documentation

◆ vtkMRMLNodeWriter()

vtkMRMLNodeWriter::vtkMRMLNodeWriter ( )

protected

◆ ~vtkMRMLNodeWriter()

vtkMRMLNodeWriter::~vtkMRMLNodeWriter ( )

overrideprotected

Member Function Documentation

◆ CanWriteObject()

bool vtkMRMLNodeWriter::CanWriteObject ( vtkObject * object )

overridevirtual

Return true if the object is a storable node of any of the node class names.

Reimplemented from vtkMRMLFileWriter.

◆ CreateNodeWriter()

static vtkSmartPointer< vtkMRMLNodeWriter > vtkMRMLNodeWriter::CreateNodeWriter	(	const std::string &	description,
		const std::string &	fileType,
		const std::vector< std::string > &	nodeClassNames,
		bool	supportUseCompression = true )

static

Create a writer that writes nodes of the specified classes using their storage nodes. The writer is not registered in any file IO manager.

See also: vtkMRMLFileIOManager::RegisterNodeWriter()

◆ GetClassName()

virtual const char * vtkMRMLNodeWriter::GetClassName ( )

virtual

Reimplemented from vtkMRMLFileWriter.

Reimplemented in vtkSlicerMarkupsWriter, and vtkSlicerSegmentationsNodeWriter.

◆ GetNameFiltersForObject()

std::vector< std::string > vtkMRMLNodeWriter::GetNameFiltersForObject ( vtkObject * object )

overridevirtual

Return the list of the supported file formats for a particular object. Example: "NRRD (.nrrd)", "Model (.vtk)".

Reimplemented from vtkMRMLFileWriter.

Reimplemented in vtkSlicerMarkupsWriter.

◆ GetNodeByID()

virtual vtkMRMLNode * vtkMRMLNodeWriter::GetNodeByID ( const std::string & id )

virtual

Get node from the scene by node ID.

◆ GetOptionsDescription()

void vtkMRMLNodeWriter::GetOptionsDescription ( vtkMRMLIOOptionsDescription * description )

overridevirtual

Options: "useCompression", "compressionParameter" (if SupportUseCompression is enabled). Default values are taken from the storage node of the node that is written ("nodeID" property).

Reimplemented from vtkMRMLFileIOHandler.

Reimplemented in vtkSlicerSegmentationsNodeWriter.

◆ GetSupportUseCompression()

virtual bool vtkMRMLNodeWriter::GetSupportUseCompression ( )

virtual

Some storage nodes don't support the compression option.

◆ IsA()

virtual int vtkMRMLNodeWriter::IsA ( const char * type )

virtual

Reimplemented from vtkMRMLFileWriter.

Reimplemented in vtkSlicerMarkupsWriter, and vtkSlicerSegmentationsNodeWriter.

◆ IsTypeOf()

static int vtkMRMLNodeWriter::IsTypeOf ( const char * type )

static

◆ New()

static vtkMRMLNodeWriter * vtkMRMLNodeWriter::New ( )

static

◆ PrintSelf()

void vtkMRMLNodeWriter::PrintSelf	(	ostream &	os,
		vtkIndent	indent )

override

◆ SafeDownCast()

static vtkMRMLNodeWriter * vtkMRMLNodeWriter::SafeDownCast ( vtkObject * o )

static

◆ SetSupportUseCompression()

virtual void vtkMRMLNodeWriter::SetSupportUseCompression ( bool )

virtual

◆ SupportUseCompressionOff()

virtual void vtkMRMLNodeWriter::SupportUseCompressionOff ( )

virtual

◆ SupportUseCompressionOn()

virtual void vtkMRMLNodeWriter::SupportUseCompressionOn ( )

virtual

◆ Write()

bool vtkMRMLNodeWriter::Write ( vtkMRMLIOProperties * properties )

overridevirtual

Write the node referenced by "nodeID" into the "fileName" file. Optionally, "useCompression", "compressionParameter", and "fileFormat" can be specified. Return true on success, false otherwise. Create a storage node if the storable node doesn't have any.

Reimplemented from vtkMRMLFileWriter.

Reimplemented in vtkSlicerMarkupsWriter, and vtkSlicerSegmentationsNodeWriter.

◆ WriteNode()

bool vtkMRMLNodeWriter::WriteNode	(	vtkMRMLStorableNode *	node,
		vtkMRMLIOProperties *	properties )

Write the specified node into the "fileName" file, without checking if the writer can write the node. Optionally, "useCompression", "compressionParameter", and "fileFormat" can be specified. The node is added to the written node IDs on success. Written node IDs are not cleared. It allows subclasses and Qt-based writers (qSlicerNodeWriter) to use a custom method for finding the node and checking if it can be written. Return true on success, false otherwise.

Member Data Documentation

◆ SupportUseCompression

bool vtkMRMLNodeWriter::SupportUseCompression { true }

protected

Definition at line 84 of file vtkMRMLNodeWriter.h.

The documentation for this class was generated from the following file:

Libs/MRML/Logic/vtkMRMLNodeWriter.h
