#include <Modules/Loadable/LayerDM/Logic/vtkSlicerLayerDMLogic.h>

Inheritance diagram for vtkSlicerLayerDMLogic:

[legend]

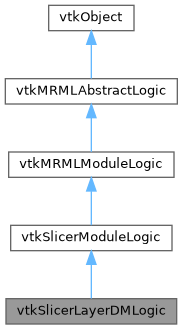

Collaboration diagram for vtkSlicerLayerDMLogic:

[legend]

Public Types
typedef vtkSlicerModuleLogic	Superclass

Public Types inherited from vtkSlicerModuleLogic
typedef vtkMRMLModuleLogic	Superclass

Public Types inherited from vtkMRMLModuleLogic
typedef vtkMRMLAbstractLogic	Superclass

Public Types inherited from vtkMRMLAbstractLogic
typedef vtkObject	Superclass

typedef void(vtkMRMLAbstractLogic::*	TaskFunctionPointer) (void *clientdata)

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	operator= (const vtkSlicerLayerDMLogic &)=delete

void	PrintSelf (ostream &os, vtkIndent indent) override

void	RegisterNodes () override
	Registers the LayerDM MRML nodes in the scene.

	vtkSlicerLayerDMLogic (const vtkSlicerLayerDMLogic &)=delete

Public Member Functions inherited from vtkSlicerModuleLogic
virtual vtkSlicerApplicationLogic *	GetApplicationLogic ()
	Get access to overall application state.

virtual vtkMRMLAbstractLogic *	GetModuleLogic (const char *moduleName)
	Convenience method for getting another module's logic from the application logic.

std::string	GetModuleShareDirectory () const

void	PrintSelf (ostream &os, vtkIndent indent) override

void	SetModuleShareDirectory (const std::string &shareDirectory)

Public Member Functions inherited from vtkMRMLModuleLogic
virtual std::vector< vtkSmartPointer< vtkMRMLFileIOHandler > >	CreateFileIOHandlers ()

void	PrintSelf (ostream &os, vtkIndent indent) override

Public Member Functions inherited from vtkMRMLAbstractLogic
virtual vtkMRMLApplicationLogic *	GetMRMLApplicationLogic () const
	Get access to overall application state.

vtkMRMLScene *	GetMRMLScene () const
	Return a reference to the current MRML scene.

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual void	SetMRMLApplicationLogic (vtkMRMLApplicationLogic *logic)

void	SetMRMLScene (vtkMRMLScene *newScene)
	Set and observe the MRMLScene.

Static Public Member Functions
static void	CreateDefaultEventTranslation (vtkMRMLNode node, const std::string &singletonId, const std::function< void(vtkMRMLLayerDMWidgetEventTranslationNode )> &configureF)

template<typename T>
static T *	CreateDisplayNode (vtkMRMLNode *node, bool allowMultiple=false)

template<typename T>
static T *	CreateReferenceNode (vtkMRMLNode *node, bool allowMultiple=false)

template<typename T>
static T *	CreateReferenceNode (vtkMRMLNode node, const char role, bool allowMultiple=false)

static vtkMRMLLayerDMWidgetEventTranslationNode *	CreateWidgetEventTranslationSingleton (vtkMRMLScene *scene, const std::string &singletonId)

template<typename T>
static T *	GetDisplayNode (vtkMRMLNode *node)

static std::string	GetDisplayRole ()

static std::string	GetEventTranslationRole ()

template<typename T>
static T *	GetReferenceNode (vtkMRMLNode *node)

template<typename T>
static T *	GetReferenceNode (vtkMRMLNode node, const char role)

template<typename T>
static std::vector< T * >	GetReferenceNodes (vtkMRMLNode *node)

template<typename T>
static std::vector< T * >	GetReferenceNodes (vtkMRMLNode node, const char role)

static vtkMRMLLayerDMWidgetEventTranslationNode *	GetWidgetEventTranslationNode (vtkMRMLNode *node)

static vtkMRMLLayerDMWidgetEventTranslationNode *	GetWidgetEventTranslationSingleton (vtkMRMLScene *scene, const std::string &singletonId)
	Get the singleton translation node with given ID if it exists in the scene.

static vtkMRMLLayerDMWidgetEventTranslationNode *	GetWidgetEventTranslationSingleton (vtkMRMLScene scene, const std::string &singletonId, const std::function< void(vtkMRMLLayerDMWidgetEventTranslationNode )> &configureF)

static int	IsTypeOf (const char *type)

static vtkSlicerLayerDMLogic *	New ()

template<typename T>
static void	RegisterNodeIfNeeded (vtkMRMLScene *scene)

static vtkSlicerLayerDMLogic *	SafeDownCast (vtkObject *o)

static void	SetWidgetEventTranslationNode (vtkMRMLNode node, vtkMRMLLayerDMWidgetEventTranslationNode translationNode)
	Attach a translation node ref to the input node.


template<typename T>
static T *	AddReferenceNode (vtkMRMLNode node, T nodeRef, const char *role)

template<typename T>
static T *	SetReferenceNode (vtkMRMLNode node, T nodeRef, const char *role)

template<typename T>
static T *	SetNthReferenceNode (vtkMRMLNode node, T nodeRef, const char *role, int nthRef)

Static Public Member Functions inherited from vtkSlicerModuleLogic
static int	IsTypeOf (const char *type)

static vtkSlicerModuleLogic *	New ()
	The Usual vtk class functions.

static vtkSlicerModuleLogic *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkMRMLModuleLogic
static int	IsTypeOf (const char *type)

static vtkMRMLModuleLogic *	New ()

static vtkMRMLModuleLogic *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from vtkMRMLAbstractLogic
static int	IsTypeOf (const char *type)

static vtkMRMLAbstractLogic *	New ()

static vtkMRMLAbstractLogic *	SafeDownCast (vtkObject *o)

Protected Member Functions
	vtkSlicerLayerDMLogic ()=default

	~vtkSlicerLayerDMLogic () override=default

Protected Member Functions inherited from vtkSlicerModuleLogic
	vtkSlicerModuleLogic ()

	~vtkSlicerModuleLogic () override

Protected Member Functions inherited from vtkMRMLModuleLogic
	vtkMRMLModuleLogic ()

	~vtkMRMLModuleLogic () override

Protected Member Functions inherited from vtkMRMLAbstractLogic
int	EndModify (bool wasModifying)

virtual bool	EnterMRMLLogicsCallback () const

virtual bool	EnterMRMLNodesCallback () const

virtual bool	EnterMRMLSceneCallback () const

bool	GetDisableModifiedEvent () const

int	GetInMRMLLogicsCallbackFlag () const

int	GetInMRMLNodesCallbackFlag () const

int	GetInMRMLSceneCallbackFlag () const

vtkCallbackCommand *	GetMRMLLogicsCallbackCommand ()

vtkObserverManager *	GetMRMLLogicsObserverManager () const

vtkCallbackCommand *	GetMRMLNodesCallbackCommand ()

vtkObserverManager *	GetMRMLNodesObserverManager () const

vtkCallbackCommand *	GetMRMLSceneCallbackCommand ()

vtkObserverManager *	GetMRMLSceneObserverManager () const

int	GetPendingModifiedEventCount () const

int	GetProcessingMRMLSceneEvent () const
	Return the event id currently processed or 0 if any.

int	InvokePendingModifiedEvent ()

void	Modified () override

virtual void	ObserveMRMLScene ()

virtual void	OnMRMLNodeModified (vtkMRMLNode *)

virtual void	OnMRMLSceneEndBatchProcess ()

virtual void	OnMRMLSceneEndClose ()

virtual void	OnMRMLSceneEndImport ()

virtual void	OnMRMLSceneEndRestore ()

virtual void	OnMRMLSceneNew ()

virtual void	OnMRMLSceneNodeAdded (vtkMRMLNode *)

virtual void	OnMRMLSceneNodeRemoved (vtkMRMLNode *)

virtual void	OnMRMLSceneStartBatchProcess ()

virtual void	OnMRMLSceneStartClose ()

virtual void	OnMRMLSceneStartImport ()

virtual void	OnMRMLSceneStartRestore ()

virtual void	ProcessMRMLLogicsEvents (vtkObject caller, unsigned long event, void callData)

virtual void	ProcessMRMLNodesEvents (vtkObject caller, unsigned long event, void callData)

virtual void	ProcessMRMLSceneEvents (vtkObject caller, unsigned long event, void callData)

void	SetAndObserveMRMLSceneEventsInternal (vtkMRMLScene newScene, vtkIntArray events, vtkFloatArray *priorities=nullptr)

void	SetDisableModifiedEvent (bool onOff)

void	SetInMRMLLogicsCallbackFlag (int flag)

void	SetInMRMLNodesCallbackFlag (int flag)

void	SetInMRMLSceneCallbackFlag (int flag)

virtual void	SetMRMLSceneInternal (vtkMRMLScene *newScene)

void	SetProcessingMRMLSceneEvent (int event)

bool	StartModify ()

virtual void	UnobserveMRMLScene ()

virtual void	UpdateFromMRMLScene ()

	vtkMRMLAbstractLogic ()

	~vtkMRMLAbstractLogic () override

Additional Inherited Members
Static Protected Member Functions inherited from vtkMRMLAbstractLogic
static void	MRMLLogicsCallback (vtkObject caller, unsigned long eid, void clientData, void *callData)
	MRMLLogicCallback is a static function to relay modified events from the logics.

static void	MRMLNodesCallback (vtkObject caller, unsigned long eid, void clientData, void *callData)
	MRMLNodesCallback is a static function to relay modified events from the nodes.

static void	MRMLSceneCallback (vtkObject caller, unsigned long eid, void clientData, void *callData)

Detailed Description

Logic class for the LayerDM module. Provides helper templates to simplify registering and accessing custom display nodes.

Definition at line 35 of file vtkSlicerLayerDMLogic.h.

Member Typedef Documentation

◆ Superclass

typedef vtkSlicerModuleLogic vtkSlicerLayerDMLogic::Superclass

Definition at line 39 of file vtkSlicerLayerDMLogic.h.

Constructor & Destructor Documentation

◆ vtkSlicerLayerDMLogic() [1/2]

vtkSlicerLayerDMLogic::vtkSlicerLayerDMLogic ( const vtkSlicerLayerDMLogic & )

delete

◆ vtkSlicerLayerDMLogic() [2/2]

vtkSlicerLayerDMLogic::vtkSlicerLayerDMLogic ( )

protecteddefault

◆ ~vtkSlicerLayerDMLogic()

vtkSlicerLayerDMLogic::~vtkSlicerLayerDMLogic ( )

overrideprotecteddefault

Member Function Documentation

◆ AddReferenceNode()

template<typename T>

T * vtkSlicerLayerDMLogic::AddReferenceNode	(	vtkMRMLNode *	node,
		T *	nodeRef,
		const char *	role )

static

Utility method change the node references of the input node using nodeRef and given role. If either the node or nodeRef is nullptr, does nothing. Will invoke a Modified event on the nodeRef after modification.

Definition at line 276 of file vtkSlicerLayerDMLogic.h.

◆ CreateDefaultEventTranslation()

static void vtkSlicerLayerDMLogic::CreateDefaultEventTranslation	(	vtkMRMLNode *	node,
		const std::string &	singletonId,
		const std::function< void(vtkMRMLLayerDMWidgetEventTranslationNode *)> &	configureF )

static

If the input node doesn't have any translation node, sets the singleton TL node as TL node. If the singleton doesn't yet exist in the scene, creates and initializes the TL node singleton given the input configure method.

If the node already has a TL node, does nothing. If the node doesn't have a TL node and isn't set in the Scene, does nothing.

◆ CreateDisplayNode()

template<typename T>

T * vtkSlicerLayerDMLogic::CreateDisplayNode	(	vtkMRMLNode *	node,
		bool	allowMultiple = false )

static

Creates a display node of given type and attach it to the input node

Parameters

node	instance of node for which the display node will be created. If the node is nullptr or not attached to a scene, will not create any node.
allowMultiple	when false, will return the existing display node if a display node of given type / role is already attached to the input node.

Definition at line 240 of file vtkSlicerLayerDMLogic.h.

◆ CreateReferenceNode() [1/2]

template<typename T>

T * vtkSlicerLayerDMLogic::CreateReferenceNode	(	vtkMRMLNode *	node,
		bool	allowMultiple = false )

static

Creates a reference node of given type and role and attach it to the input node.

Parameters

node	instance of node for which the display node will be created. If the node is nullptr or not attached to a scene, will not create any node.
allowMultiple	when false, will return the existing ref node if a ref node of given type / role is already attached to the input node.

Expects T to have a static T::GetReferenceRole method returning its reference role.

Definition at line 270 of file vtkSlicerLayerDMLogic.h.

◆ CreateReferenceNode() [2/2]

template<typename T>

T * vtkSlicerLayerDMLogic::CreateReferenceNode	(	vtkMRMLNode *	node,
		const char *	role,
		bool	allowMultiple = false )

static

Creates a reference node of given type and role and attach it to the input node.

Parameters

node	instance of node for which the display node will be created. If the node is nullptr or not attached to a scene, will not create any node.
role	name of the role for the created and attached reference node. Role can be any arbitrary string.
allowMultiple	when false, will return the existing ref node if a ref node of given type / role is already attached to the input node.

Definition at line 251 of file vtkSlicerLayerDMLogic.h.

◆ CreateWidgetEventTranslationSingleton()

static vtkMRMLLayerDMWidgetEventTranslationNode * vtkSlicerLayerDMLogic::CreateWidgetEventTranslationSingleton	(	vtkMRMLScene *	scene,
		const std::string &	singletonId )

static

Create a singleton translation node with given ID.

By default, the created singleton is set to not be saved with the scene to avoid changing interaction events when loading scenes coming from other users.

◆ GetClassName()

virtual const char * vtkSlicerLayerDMLogic::GetClassName ( )

virtual

Reimplemented from vtkSlicerModuleLogic.

◆ GetDisplayNode()

template<typename T>

T * vtkSlicerLayerDMLogic::GetDisplayNode ( vtkMRMLNode * node )

static

Returns: the first display node attached to the input displayable node with given type

Definition at line 191 of file vtkSlicerLayerDMLogic.h.

◆ GetDisplayRole()

static std::string vtkSlicerLayerDMLogic::GetDisplayRole ( )

static

Returns: the role associated with display nodes (equivalent to vtkMRMLDisplayableNode::GetDisplayRole but non-virtual and static)

◆ GetEventTranslationRole()

static std::string vtkSlicerLayerDMLogic::GetEventTranslationRole ( )

static

Returns: the role associated with widget event translation

◆ GetReferenceNode() [1/2]

template<typename T>

T * vtkSlicerLayerDMLogic::GetReferenceNode ( vtkMRMLNode * node )

static

Returns: the first reference node of given type attached to the input node with given role. Expects T to have a static T::GetReferenceRole method returning its reference role.

Definition at line 209 of file vtkSlicerLayerDMLogic.h.

◆ GetReferenceNode() [2/2]

template<typename T>

T * vtkSlicerLayerDMLogic::GetReferenceNode	(	vtkMRMLNode *	node,
		const char *	role )

static

Returns: the first reference node of given type attached to the input node with given role.

Definition at line 202 of file vtkSlicerLayerDMLogic.h.

◆ GetReferenceNodes() [1/2]

template<typename T>

std::vector< T * > vtkSlicerLayerDMLogic::GetReferenceNodes ( vtkMRMLNode * node )

static

Returns: all the reference nodes of given type attached to the input node with given role. Expects T to have a static T::GetReferenceRole method returning its reference role.

Definition at line 234 of file vtkSlicerLayerDMLogic.h.

◆ GetReferenceNodes() [2/2]

template<typename T>

std::vector< T * > vtkSlicerLayerDMLogic::GetReferenceNodes	(	vtkMRMLNode *	node,
		const char *	role )

static

Returns: all the reference nodes of given type attached to the input node with given role.

Definition at line 215 of file vtkSlicerLayerDMLogic.h.

◆ GetWidgetEventTranslationNode()

static vtkMRMLLayerDMWidgetEventTranslationNode * vtkSlicerLayerDMLogic::GetWidgetEventTranslationNode ( vtkMRMLNode * node )

static

Returns: the widget event translation node attached to the input node.

◆ GetWidgetEventTranslationSingleton() [1/2]

static vtkMRMLLayerDMWidgetEventTranslationNode * vtkSlicerLayerDMLogic::GetWidgetEventTranslationSingleton	(	vtkMRMLScene *	scene,
		const std::string &	singletonId )

static

Get the singleton translation node with given ID if it exists in the scene.

◆ GetWidgetEventTranslationSingleton() [2/2]

static vtkMRMLLayerDMWidgetEventTranslationNode * vtkSlicerLayerDMLogic::GetWidgetEventTranslationSingleton	(	vtkMRMLScene *	scene,
		const std::string &	singletonId,
		const std::function< void(vtkMRMLLayerDMWidgetEventTranslationNode *)> &	configureF )

static

Get the singleton translation node with given ID if it exists in the scene. If it doesn't exist in the scene, creates the singleton and configures the singleton given the input configure function.

◆ IsA()

virtual int vtkSlicerLayerDMLogic::IsA ( const char * type )

virtual

Reimplemented from vtkSlicerModuleLogic.

◆ IsTypeOf()

static int vtkSlicerLayerDMLogic::IsTypeOf ( const char * type )

static

◆ New()

static vtkSlicerLayerDMLogic * vtkSlicerLayerDMLogic::New ( )

static

◆ operator=()

void vtkSlicerLayerDMLogic::operator= ( const vtkSlicerLayerDMLogic & )

delete

◆ PrintSelf()

void vtkSlicerLayerDMLogic::PrintSelf	(	ostream &	os,
		vtkIndent	indent )

override

◆ RegisterNodeIfNeeded()

template<typename T>

void vtkSlicerLayerDMLogic::RegisterNodeIfNeeded ( vtkMRMLScene * scene )

static

Register node if the node isn't already registered in the scene. Otherwise, registering multiple time the same node will overwrite the previous node and generate a warning.

Definition at line 176 of file vtkSlicerLayerDMLogic.h.

◆ RegisterNodes()

void vtkSlicerLayerDMLogic::RegisterNodes ( )

overridevirtual

Registers the LayerDM MRML nodes in the scene.

Reimplemented from vtkMRMLAbstractLogic.

◆ SafeDownCast()

static vtkSlicerLayerDMLogic * vtkSlicerLayerDMLogic::SafeDownCast ( vtkObject * o )

static

◆ SetNthReferenceNode()

template<typename T>

T * vtkSlicerLayerDMLogic::SetNthReferenceNode	(	vtkMRMLNode *	node,
		T *	nodeRef,
		const char *	role,
		int	nthRef )

static

Definition at line 288 of file vtkSlicerLayerDMLogic.h.

◆ SetReferenceNode()

template<typename T>

T * vtkSlicerLayerDMLogic::SetReferenceNode	(	vtkMRMLNode *	node,
		T *	nodeRef,
		const char *	role )

static

Definition at line 282 of file vtkSlicerLayerDMLogic.h.

◆ SetWidgetEventTranslationNode()

static void vtkSlicerLayerDMLogic::SetWidgetEventTranslationNode	(	vtkMRMLNode *	node,
		vtkMRMLLayerDMWidgetEventTranslationNode *	translationNode )

static

Attach a translation node ref to the input node.

The documentation for this class was generated from the following file:

Modules/Loadable/LayerDM/Logic/vtkSlicerLayerDMLogic.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ Superclass

Constructor & Destructor Documentation

◆ vtkSlicerLayerDMLogic() [1/2]

◆ vtkSlicerLayerDMLogic() [2/2]

◆ ~vtkSlicerLayerDMLogic()

Member Function Documentation

◆ AddReferenceNode()

◆ CreateDefaultEventTranslation()

◆ CreateDisplayNode()

◆ CreateReferenceNode() [1/2]

◆ CreateReferenceNode() [2/2]

◆ CreateWidgetEventTranslationSingleton()

◆ GetClassName()

◆ GetDisplayNode()

◆ GetDisplayRole()

◆ GetEventTranslationRole()

◆ GetReferenceNode() [1/2]

◆ GetReferenceNode() [2/2]

◆ GetReferenceNodes() [1/2]

◆ GetReferenceNodes() [2/2]

◆ GetWidgetEventTranslationNode()

◆ GetWidgetEventTranslationSingleton() [1/2]

◆ GetWidgetEventTranslationSingleton() [2/2]

◆ IsA()

◆ IsTypeOf()

◆ New()

◆ operator=()

◆ PrintSelf()

◆ RegisterNodeIfNeeded()

◆ RegisterNodes()

◆ SafeDownCast()

◆ SetNthReferenceNode()

◆ SetReferenceNode()

◆ SetWidgetEventTranslationNode()
