SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect Class Reference

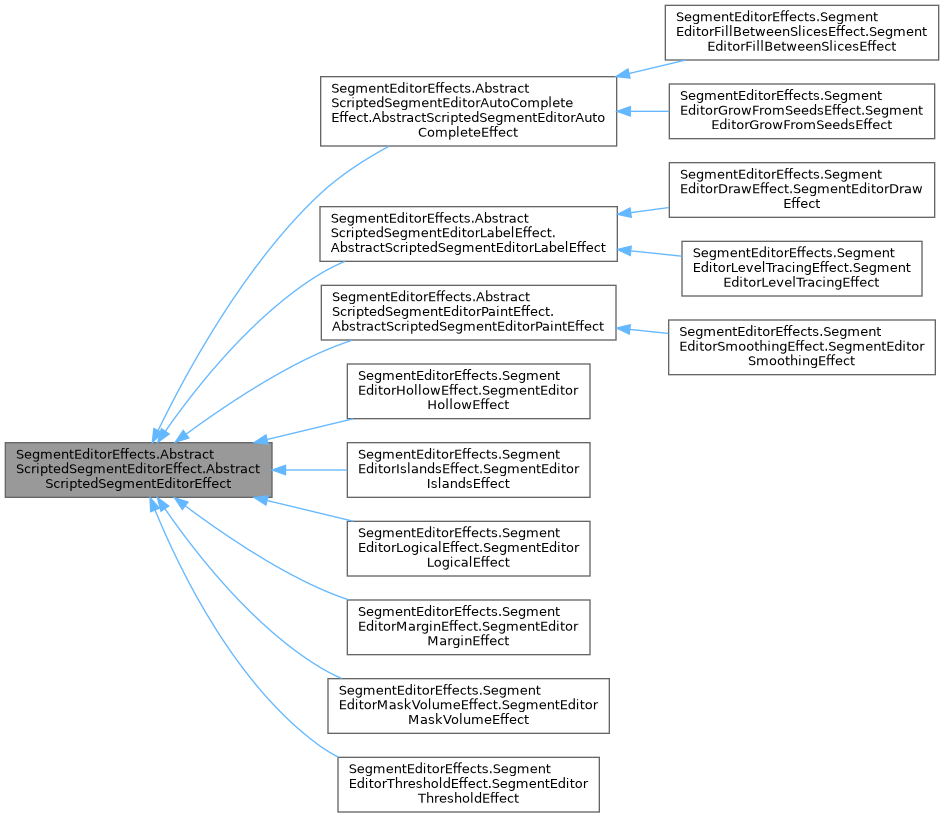

Inheritance diagram for SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect:

Public Member Functions
	__init__ (self, scriptedEffect)
	rasToXy (self, ras, viewWidget)
	register (self)
	setWidgetMinMaxStepFromImageSpacing (self, spinbox, imageData)
	xyToIjk (self, xy, viewWidget, image, parentTransformNode=None)
	xyToRas (self, xy, viewWidget)
	xyzToIjk (self, xyz, viewWidget, image, parentTransformNode=None)
	xyzToRas (self, xyz, viewWidget)

Public Attributes
	scriptedEffect

Detailed Description

Abstract scripted segment editor effects for effects implemented in python.

An example of generic effect is ``ThresholdEffect``.

To use the effect, follow these steps:

1. Instantiation and registration

  Instantiate segment editor effect adaptor class from
  module (e.g. from setup function), and set python source::

    import qSlicerSegmentationsEditorEffectsPythonQt as effects
    scriptedEffect = effects.qSlicerSegmentEditorScriptedEffect(None)
    scriptedEffect.setPythonSource(MyEffect.filePath)
    scriptedEffect.self().register()

  If effect name is added to ``slicer.modules.segmenteditorscriptedeffectnames``
  list then the above instantiation and registration steps are not necessary,
  as the `SegmentEditor` module do all these.

2. Call host C++ implementation using::

    self.scriptedEffect.functionName()

2.a. Most frequently used methods are:

  - Parameter get/set: ``parameter``, ``integerParameter``, ``doubleParameter``, ``setParameter``
  - Add options widget: ``addOptionsWidget``
  - Coordinate transforms: ``rasToXy``, ``xyzToRas``, ``xyToRas``, ``xyzToIjk``, ``xyToIjk``
  - Convenience getters: ``renderWindow``, ``renderer``, ``viewNode``

2.b. Always call API functions (the ones that are defined in the adaptor \
     class ``qSlicerSegmentEditorScriptedEffect``) using the adaptor accessor ``self.scriptedEffect``.

  For example::

    self.scriptedEffect.updateGUIFromMRML()

3. To prevent deactivation of an effect by clicking place fiducial toolbar button, \
   override ``interactionNodeModified(self, interactionNode)``

Definition at line 6 of file AbstractScriptedSegmentEditorEffect.py.

Constructor & Destructor Documentation

__init__()

SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.__init__	(		self,
			scriptedEffect )

Reimplemented in SegmentEditorEffects.AbstractScriptedSegmentEditorAutoCompleteEffect.AbstractScriptedSegmentEditorAutoCompleteEffect, SegmentEditorEffects.AbstractScriptedSegmentEditorLabelEffect.AbstractScriptedSegmentEditorLabelEffect, SegmentEditorEffects.AbstractScriptedSegmentEditorPaintEffect.AbstractScriptedSegmentEditorPaintEffect, SegmentEditorEffects.SegmentEditorDrawEffect.SegmentEditorDrawEffect, SegmentEditorEffects.SegmentEditorFillBetweenSlicesEffect.SegmentEditorFillBetweenSlicesEffect, SegmentEditorEffects.SegmentEditorGrowFromSeedsEffect.SegmentEditorGrowFromSeedsEffect, SegmentEditorEffects.SegmentEditorHollowEffect.SegmentEditorHollowEffect, SegmentEditorEffects.SegmentEditorIslandsEffect.SegmentEditorIslandsEffect, SegmentEditorEffects.SegmentEditorLevelTracingEffect.SegmentEditorLevelTracingEffect, SegmentEditorEffects.SegmentEditorLogicalEffect.SegmentEditorLogicalEffect, SegmentEditorEffects.SegmentEditorMarginEffect.SegmentEditorMarginEffect, SegmentEditorEffects.SegmentEditorMaskVolumeEffect.SegmentEditorMaskVolumeEffect, SegmentEditorEffects.SegmentEditorSmoothingEffect.SegmentEditorSmoothingEffect, and SegmentEditorEffects.SegmentEditorThresholdEffect.SegmentEditorThresholdEffect.

Definition at line 49 of file AbstractScriptedSegmentEditorEffect.py.

Member Function Documentation

rasToXy()

SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.rasToXy	(		self,
			ras,
			viewWidget )

Definition at line 59 of file AbstractScriptedSegmentEditorEffect.py.

register()

SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.register

(

self

)

Definition at line 52 of file AbstractScriptedSegmentEditorEffect.py.

setWidgetMinMaxStepFromImageSpacing()

SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.setWidgetMinMaxStepFromImageSpacing	(		self,
			spinbox,
			imageData )

Definition at line 84 of file AbstractScriptedSegmentEditorEffect.py.

xyToIjk()

SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.xyToIjk	(		self,
			xy,
			viewWidget,
			image,
			parentTransformNode = None )

Definition at line 79 of file AbstractScriptedSegmentEditorEffect.py.

xyToRas()

SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.xyToRas	(		self,
			xy,
			viewWidget )

Definition at line 69 of file AbstractScriptedSegmentEditorEffect.py.

xyzToIjk()

SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.xyzToIjk	(		self,
			xyz,
			viewWidget,
			image,
			parentTransformNode = None )

Definition at line 74 of file AbstractScriptedSegmentEditorEffect.py.

xyzToRas()

SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.xyzToRas	(		self,
			xyz,
			viewWidget )

Definition at line 64 of file AbstractScriptedSegmentEditorEffect.py.

Member Data Documentation

scriptedEffect

SegmentEditorEffects.AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.scriptedEffect

Definition at line 50 of file AbstractScriptedSegmentEditorEffect.py.

---

The documentation for this class was generated from the following file:

• Modules/Loadable/Segmentations/EditorEffects/Python/SegmentEditorEffects/AbstractScriptedSegmentEditorEffect.py
