Interface for the layered displayable manager pipelines. More...

#include <Modules/Loadable/LayerDM/MRMLDM/vtkMRMLLayerDMPipeline.h>

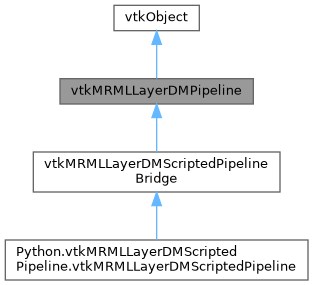

Inheritance diagram for vtkMRMLLayerDMPipeline:

[legend]

Collaboration diagram for vtkMRMLLayerDMPipeline:

Public Types
enum	Events { RenderGroupingModified = vtkCommand::UserEvent + 1 }

typedef vtkObject	Superclass

Public Member Functions
bool	BlockUpdateDisplay (bool isBlocked)
	If.

virtual bool	CanProcessInteractionEvent (vtkMRMLInteractionEventData *eventData, double &distance2)

virtual const char *	GetClassName ()

virtual vtkCamera *	GetCustomCamera () const

virtual vtkCamera *	GetCustomCamera (unsigned int renderOrder) const

vtkMRMLNode *	GetDisplayNode () const
	Returns the current display node.

unsigned int	GetMaxRenderOrder () const
	Maximum render order handled by the DM.

virtual int	GetMouseCursor () const

vtkMRMLLayerDMPipeline *	GetNodePipeline (vtkMRMLNode *node) const

vtkMRMLLayerDMPipelineManager *	GetPipelineManager () const
	Returns the instance of pipeline manager which created the pipeline.

vtkRenderer *	GetRenderer () const

vtkRenderer *	GetRenderer (unsigned int renderOrder) const

std::vector< vtkRenderer * >	GetRenderers () const
	Returns the current renderers attached to the pipeline in increasing order of GetRenderOrders.

virtual unsigned int	GetRenderOrder () const

virtual std::vector< unsigned int >	GetRenderOrders () const

vtkMRMLScene *	GetScene () const
	Returns the current scene.

vtkMRMLAbstractViewNode *	GetViewNode () const
	Returns the current view node.

unsigned int	GetVtkRendererOrder (const vtkRenderer *renderer) const

virtual int	GetWidgetState () const

virtual int	IsA (const char *type)

virtual void	LoseFocus (vtkMRMLInteractionEventData *eventData)

virtual void	OnDefaultCameraModified (vtkCamera *camera)

virtual void	OnRendererAdded (vtkRenderer *renderer)

virtual void	OnRendererRemoved (vtkRenderer *renderer)

void	PrintSelf (ostream &os, vtkIndent indent) override

virtual bool	ProcessInteractionEvent (vtkMRMLInteractionEventData *eventData)

void	RemoveObservations (vtkObject *prevObj) const

void	RequestRender () const

virtual void	SetDisplayNode (vtkMRMLNode *displayNode)

virtual void	SetPipelineManager (vtkMRMLLayerDMPipelineManager *pipelineManager)

void	SetRenderer (vtkRenderer *renderer)

void	SetRenderers (const std::vector< vtkRenderer * > &renderers, const std::vector< unsigned int > &renderOrders)

virtual void	SetScene (vtkMRMLScene *scene)

virtual void	SetViewNode (vtkMRMLAbstractViewNode *viewNode)

void	UpdateDisplay ()

virtual void	UpdateFromMRML ()


virtual void	OnReferenceToDisplayNodeAdded (vtkMRMLNode *fromNode, const std::string &role)

virtual void	OnReferenceToDisplayNodeRemoved (vtkMRMLNode *fromNode, const std::string &role)


bool	BlockInteractionProcessing (bool isBlocked)

bool	IsInteractionProcessingBlocked () const


bool	BlockUpdateObserver (bool isBlocked) const

bool	IsUpdateObserverBlocked () const


void	SetFrozen (bool isFrozen)

bool	IsFrozen () const


bool	UpdateObservation (vtkObject prevObj, vtkObject obj, const std::vector< unsigned long > &events) const

bool	UpdateObservation (vtkObject prevObj, vtkObject obj, unsigned long event=vtkCommand::ModifiedEvent) const

Static Public Member Functions
static int	IsTypeOf (const char *type)

static vtkMRMLLayerDMPipeline *	New ()

static vtkMRMLLayerDMPipeline *	SafeDownCast (vtkObject *o)

Protected Member Functions
virtual void	OnUpdate (vtkObject obj, unsigned long eventId, void callData)

	vtkMRMLLayerDMPipeline ()

	~vtkMRMLLayerDMPipeline () override=default

Detailed Description

Interface for the layered displayable manager pipelines.

Contains empty implementation and default behavior for the different API calls. Implementation can be limited to

See also: UpdateFromMRML and reactivity on node changes for pure display pipelines.

Widget pipelines should also implement the

See also: CanProcessInteractionEvent and; ProcessInteractionEvent methods.

A python main class is available from

See also: vtkMRMLLayerDMScriptedPipeline.py

Definition at line 53 of file vtkMRMLLayerDMPipeline.h.

Member Typedef Documentation

◆ Superclass

typedef vtkObject vtkMRMLLayerDMPipeline::Superclass

Definition at line 57 of file vtkMRMLLayerDMPipeline.h.

Member Enumeration Documentation

◆ Events

enum vtkMRMLLayerDMPipeline::Events

Enumerator

RenderGroupingModified

To emit when the pipeline grouping configuration changes (e.g., custom camera or render orders).

See also: vtkMRMLLayerDMLayerManager

Definition at line 60 of file vtkMRMLLayerDMPipeline.h.

Constructor & Destructor Documentation

◆ vtkMRMLLayerDMPipeline()

vtkMRMLLayerDMPipeline::vtkMRMLLayerDMPipeline ( )

protected

◆ ~vtkMRMLLayerDMPipeline()

vtkMRMLLayerDMPipeline::~vtkMRMLLayerDMPipeline ( )

overrideprotecteddefault

Member Function Documentation

◆ BlockInteractionProcessing()

bool vtkMRMLLayerDMPipeline::BlockInteractionProcessing ( bool isBlocked )

If

Parameters

isBlocked is true, blocks

See also: CanProcessInteractionEvent and; ProcessInteractionEvent to be called.; vtkMRMLLayerDMInteractionLogic

◆ BlockUpdateDisplay()

bool vtkMRMLLayerDMPipeline::BlockUpdateDisplay ( bool isBlocked )

If.

Parameters

isBlocked is true,

See also: UpdateFromMRML is not called during; UpdateDisplay.

◆ BlockUpdateObserver()

bool vtkMRMLLayerDMPipeline::BlockUpdateObserver ( bool isBlocked ) const

If

Parameters

isBlocked is true, blocks

See also: OnUpdate method from being triggered by external changes.

◆ CanProcessInteractionEvent()

virtual bool vtkMRMLLayerDMPipeline::CanProcessInteractionEvent	(	vtkMRMLInteractionEventData *	eventData,
		double &	distance2 )

virtual

true if the pipeline can process the input event data

Parameters

eventData	The MRML event needing to be processed
distance2	Return value for the distance to the interaction (preferably actual RAS distance)

Returns: true if the pipeline can process the input event data. Default = false;

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ GetClassName()

virtual const char * vtkMRMLLayerDMPipeline::GetClassName ( )

virtual

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ GetCustomCamera() [1/2]

virtual vtkCamera * vtkMRMLLayerDMPipeline::GetCustomCamera ( ) const

virtual

Custom pipeline camera. If the returned value is not nullptr, then the pipeline (or dedicated logic) is expected to handle its own camera. Otherwise, the pipeline will be moved in a renderer with a default camera synchronized on its view default camera.

See also: vtkMRMLLayerDMCameraSynchronizer

Returns: nullptr by default.

◆ GetCustomCamera() [2/2]

virtual vtkCamera * vtkMRMLLayerDMPipeline::GetCustomCamera ( unsigned int renderOrder ) const

virtual

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ GetDisplayNode()

vtkMRMLNode * vtkMRMLLayerDMPipeline::GetDisplayNode ( ) const

Returns the current display node.

◆ GetMaxRenderOrder()

unsigned int vtkMRMLLayerDMPipeline::GetMaxRenderOrder ( ) const

Maximum render order handled by the DM.

◆ GetMouseCursor()

virtual int vtkMRMLLayerDMPipeline::GetMouseCursor ( ) const

virtual

Custom mouse cursor from VTK mouse cursor enum. This value is only used if the pipeline actually processes an event and is ignore otherwise.

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ GetNodePipeline()

vtkMRMLLayerDMPipeline * vtkMRMLLayerDMPipeline::GetNodePipeline ( vtkMRMLNode * node ) const

Returns the pipeline associated with the input node. Delegates to

See also: vtkMRMLLayerDMPipelineManager::GetNodePipeline. nullptr if not found or pipelineManager instance is nullptr.

◆ GetPipelineManager()

vtkMRMLLayerDMPipelineManager * vtkMRMLLayerDMPipeline::GetPipelineManager ( ) const

Returns the instance of pipeline manager which created the pipeline.

◆ GetRenderer() [1/2]

vtkRenderer * vtkMRMLLayerDMPipeline::GetRenderer ( ) const

Returns a renderer from the map of renderers attached to the pipeline. The returned renderer corresponds to the lowest render order key in the render map. Use GetRenderOrders() and GetRenderer(renderOrder) for access to all attached renderers.

See also: OnRendererAdded; OnRendererRemoved; GetRenderOrders; GetRenderer(unsigned int)

◆ GetRenderer() [2/2]

vtkRenderer * vtkMRMLLayerDMPipeline::GetRenderer ( unsigned int renderOrder ) const

Returns the renderer associated with the input render order If the renderer with the given render order isn't found, returns nullptr.

◆ GetRenderers()

std::vector< vtkRenderer * > vtkMRMLLayerDMPipeline::GetRenderers ( ) const

Returns the current renderers attached to the pipeline in increasing order of GetRenderOrders.

◆ GetRenderOrder()

virtual unsigned int vtkMRMLLayerDMPipeline::GetRenderOrder ( ) const

virtual

Arbitrary render order number where the pipeline wants to be displayed. Return 0 to be at the default order (main 3D Slicer pipelines) Return larger values to be rendered on top of pipelines with lower render orders. Order number is read-only during update and is expected to be static per pipeline.

See also: vtkMRMLLayerDMLayerManager

Returns: default = 0

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ GetRenderOrders()

virtual std::vector< unsigned int > vtkMRMLLayerDMPipeline::GetRenderOrders ( ) const

virtual

Pipeline render orders.

See also: GetRenderOrder

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ GetScene()

vtkMRMLScene * vtkMRMLLayerDMPipeline::GetScene ( ) const

Returns the current scene.

◆ GetViewNode()

vtkMRMLAbstractViewNode * vtkMRMLLayerDMPipeline::GetViewNode ( ) const

Returns the current view node.

◆ GetVtkRendererOrder()

unsigned int vtkMRMLLayerDMPipeline::GetVtkRendererOrder ( const vtkRenderer * renderer ) const

Get the render order associated with the input renderer If the renderer is not associated with the pipeline or nullptr, returns 0

◆ GetWidgetState()

virtual int vtkMRMLLayerDMPipeline::GetWidgetState ( ) const

virtual

Current widget state of the pipeline.

Returns: default = WidgetStateIdle

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ IsA()

virtual int vtkMRMLLayerDMPipeline::IsA ( const char * type )

virtual

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ IsFrozen()

bool vtkMRMLLayerDMPipeline::IsFrozen ( ) const

◆ IsInteractionProcessingBlocked()

bool vtkMRMLLayerDMPipeline::IsInteractionProcessingBlocked ( ) const

◆ IsTypeOf()

static int vtkMRMLLayerDMPipeline::IsTypeOf ( const char * type )

static

◆ IsUpdateObserverBlocked()

bool vtkMRMLLayerDMPipeline::IsUpdateObserverBlocked ( ) const

◆ LoseFocus()

virtual void vtkMRMLLayerDMPipeline::LoseFocus ( vtkMRMLInteractionEventData * eventData )

virtual

Triggered when the pipeline had focus (processed an interaction) and loses the focus (other pipeline handled the new interaction or window leave event). default behavior: does nothing.

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ New()

static vtkMRMLLayerDMPipeline * vtkMRMLLayerDMPipeline::New ( )

static

◆ OnDefaultCameraModified()

virtual void vtkMRMLLayerDMPipeline::OnDefaultCameraModified ( vtkCamera * camera )

virtual

Triggered when the default camera is modified. default behavior: does nothing.

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ OnReferenceToDisplayNodeAdded()

virtual void vtkMRMLLayerDMPipeline::OnReferenceToDisplayNodeAdded	(	vtkMRMLNode *	fromNode,
		const std::string &	role )

virtual

Triggered when a reference to the display node is added / removed default behavior: Triggers onUpdate with the display node as argument and ReferenceAdded / Removed eventId.

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ OnReferenceToDisplayNodeRemoved()

virtual void vtkMRMLLayerDMPipeline::OnReferenceToDisplayNodeRemoved	(	vtkMRMLNode *	fromNode,
		const std::string &	role )

virtual

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ OnRendererAdded()

virtual void vtkMRMLLayerDMPipeline::OnRendererAdded ( vtkRenderer * renderer )

virtual

Triggered when the pipeline is displayed on a new renderer. default behavior: does nothing.

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ OnRendererRemoved()

virtual void vtkMRMLLayerDMPipeline::OnRendererRemoved ( vtkRenderer * renderer )

virtual

Triggered when the pipeline is removed from its previous renderer. default behavior: does nothing.

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ OnUpdate()

virtual void vtkMRMLLayerDMPipeline::OnUpdate	(	vtkObject *	obj,
		unsigned long	eventId,
		void *	callData )

protectedvirtual

Observer update callback. Triggered when any object & events observed using UpdateObservation is triggered.

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ PrintSelf()

void vtkMRMLLayerDMPipeline::PrintSelf	(	ostream &	os,
		vtkIndent	indent )

override

◆ ProcessInteractionEvent()

virtual bool vtkMRMLLayerDMPipeline::ProcessInteractionEvent ( vtkMRMLInteractionEventData * eventData )

virtual

Triggered when the pipeline can process the interaction and is at the top of the priority list. default behavior: does nothing and returns false.

Parameters

eventData The MRML event needing to be processed

Returns: True if event was processed. False otherwise (default = false)

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ RemoveObservations()

void vtkMRMLLayerDMPipeline::RemoveObservations ( vtkObject * prevObj ) const

Remove all observed events for the input object. For updating the observer, use

See also: UpdateObservation instead.

Warning: prevObj is not mutated by this call.

◆ RequestRender()

void vtkMRMLLayerDMPipeline::RequestRender ( ) const

Request rendering and camera clipping reset. Calls are delegated to

See also: vtkMRMLLayerDMPipelineManager::RequestRender.; UpdateDisplay

◆ SafeDownCast()

static vtkMRMLLayerDMPipeline * vtkMRMLLayerDMPipeline::SafeDownCast ( vtkObject * o )

static

◆ SetDisplayNode()

virtual void vtkMRMLLayerDMPipeline::SetDisplayNode ( vtkMRMLNode * displayNode )

virtual

Set the display node for the pipeline has changed (initialization). default behavior: Stored and display node is observed for vtkCommand::ModifiedEvent.

See also: UpdateObservation; OnUpdate

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ SetFrozen()

void vtkMRMLLayerDMPipeline::SetFrozen ( bool isFrozen )

If

Parameters

isFrozen is true, blocks all reactiveness from the pipeline (UpdateDisplay, Interaction and Update). Reactiveness cannot be toggled back on unless the pipeline is unfrozen first. Used to deactivate pipelines during removal.

See also: BlockUpdateDisplay; BlockInteractionProcessing; BlockUpdateObserver

◆ SetPipelineManager()

virtual void vtkMRMLLayerDMPipeline::SetPipelineManager ( vtkMRMLLayerDMPipelineManager * pipelineManager )

virtual

Set the pipeline manager (initialization). default behavior: Stores the pipeline manager to delegate request render calls (no active observer).

Parameters

pipelineManager The instance of pipeline manager managing the current pipeline

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ SetRenderer()

void vtkMRMLLayerDMPipeline::SetRenderer ( vtkRenderer * renderer )

Set the new renderer. Triggers

See also: OnRendererAdded and; OnRendererRemoved if renderer has changed. Used for testing purposes mainly. Please use; SetRenderers for a complete definition of the renderers for each render order.

Deprecated: Usage outside of testing is deprecated.

See also: SetRenderers

◆ SetRenderers()

void vtkMRMLLayerDMPipeline::SetRenderers	(	const std::vector< vtkRenderer * > &	renderers,
		const std::vector< unsigned int > &	renderOrders )

Set the new renderers. Triggers

See also: OnRendererAdded and; OnRendererRemoved.

◆ SetScene()

virtual void vtkMRMLLayerDMPipeline::SetScene ( vtkMRMLScene * scene )

virtual

Set the pipeline scene (initialization). default behavior: Stores the scene for access (no active observer).

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ SetViewNode()

virtual void vtkMRMLLayerDMPipeline::SetViewNode ( vtkMRMLAbstractViewNode * viewNode )

virtual

Set the pipeline view node (initialization). default behavior: Stored and view node is observed for vtkCommand::ModifiedEvent.

Parameters

viewNode The instance of viewNode the pipeline is attached to

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ UpdateDisplay()

void vtkMRMLLayerDMPipeline::UpdateDisplay ( )

Updates the pipeline display and requests a new render

See also: RequestRender. Delegates actual work to; UpdateFromMRML. Called the first time after pipeline initialization.

◆ UpdateFromMRML()

virtual void vtkMRMLLayerDMPipeline::UpdateFromMRML ( )

virtual

Triggered on

See also: UpdateDisplay calls default behavior: does nothing.

Reimplemented in vtkMRMLLayerDMScriptedPipelineBridge.

◆ UpdateObservation() [1/2]

bool vtkMRMLLayerDMPipeline::UpdateObservation	(	vtkObject *	prevObj,
		vtkObject *	obj,
		const std::vector< unsigned long > &	events ) const

Remove previous monitored events from

Parameters

prevObj	and observe events from the
obj	If both obj are the same, does nothing. On event triggered, calls

See also: OnUpdate

Warning: prevObj is not mutated by this call. To update the pointer, a manual set is required after update.

◆ UpdateObservation() [2/2]

bool vtkMRMLLayerDMPipeline::UpdateObservation	(	vtkObject *	prevObj,
		vtkObject *	obj,
		unsigned long	event = vtkCommand::ModifiedEvent ) const

The documentation for this class was generated from the following file:

Modules/Loadable/LayerDM/MRMLDM/vtkMRMLLayerDMPipeline.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Member Typedef Documentation

◆ Superclass

Member Enumeration Documentation

◆ Events

Constructor & Destructor Documentation

◆ vtkMRMLLayerDMPipeline()

◆ ~vtkMRMLLayerDMPipeline()

Member Function Documentation

◆ BlockInteractionProcessing()

◆ BlockUpdateDisplay()

◆ BlockUpdateObserver()

◆ CanProcessInteractionEvent()

◆ GetClassName()

◆ GetCustomCamera() [1/2]

◆ GetCustomCamera() [2/2]

◆ GetDisplayNode()

◆ GetMaxRenderOrder()

◆ GetMouseCursor()

◆ GetNodePipeline()

◆ GetPipelineManager()

◆ GetRenderer() [1/2]

◆ GetRenderer() [2/2]

◆ GetRenderers()

◆ GetRenderOrder()

◆ GetRenderOrders()

◆ GetScene()

◆ GetViewNode()

◆ GetVtkRendererOrder()

◆ GetWidgetState()

◆ IsA()

◆ IsFrozen()

◆ IsInteractionProcessingBlocked()

◆ IsTypeOf()

◆ IsUpdateObserverBlocked()

◆ LoseFocus()

◆ New()

◆ OnDefaultCameraModified()

◆ OnReferenceToDisplayNodeAdded()

◆ OnReferenceToDisplayNodeRemoved()

◆ OnRendererAdded()

◆ OnRendererRemoved()

◆ OnUpdate()

◆ PrintSelf()

◆ ProcessInteractionEvent()

◆ RemoveObservations()

◆ RequestRender()

◆ SafeDownCast()

◆ SetDisplayNode()

◆ SetFrozen()

◆ SetPipelineManager()

◆ SetRenderer()

◆ SetRenderers()

◆ SetScene()

◆ SetViewNode()

◆ UpdateDisplay()

◆ UpdateFromMRML()

◆ UpdateObservation() [1/2]

◆ UpdateObservation() [2/2]
