qMRMLAbstractViewWidget Class Reference

#include <Libs/MRML/Widgets/qMRMLAbstractViewWidget.h>

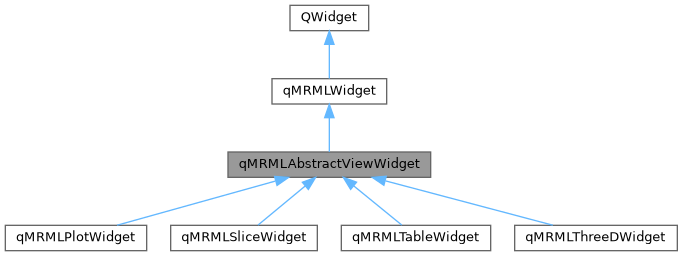

Inheritance diagram for qMRMLAbstractViewWidget:

Collaboration diagram for qMRMLAbstractViewWidget:

Public Types
typedef qMRMLWidget	Superclass
	Superclass typedef.
Public Types inherited from qMRMLWidget
typedef QWidget	Superclass

Properties
QColor	viewColor
QString	viewLabel

Public Slots
virtual void	pauseRender ()
virtual void	resumeRender ()
virtual void	setMRMLAbstractViewNode (vtkMRMLAbstractViewNode *newViewNode)=0
	Set the current viewNode to observe.
virtual void	setRenderPaused (bool pause)
Public Slots inherited from qMRMLWidget
virtual void	setMRMLScene (vtkMRMLScene *newScene)
	Set the MRML scene associated with the widget.

Public Member Functions
virtual Q_INVOKABLE qMRMLViewControllerBar *	controllerWidget () const =0
	Get slice controller.
virtual Q_INVOKABLE vtkMRMLAbstractLogic *	logic () const
virtual Q_INVOKABLE vtkMRMLAbstractViewNode *	mrmlAbstractViewNode () const =0
	Get the View node observed by view.
	qMRMLAbstractViewWidget (QWidget *parent=nullptr)
	Constructors.
virtual Q_INVOKABLE void	setViewColor (const QColor &newViewColor)
virtual Q_INVOKABLE void	setViewLabel (const QString &newViewLabel)
virtual Q_INVOKABLE QColor	viewColor () const
virtual Q_INVOKABLE QString	viewLabel () const
virtual Q_INVOKABLE QWidget *	viewWidget () const =0
	~qMRMLAbstractViewWidget () override=default
Public Member Functions inherited from qMRMLWidget
Q_INVOKABLE vtkMRMLScene *	mrmlScene () const
	Return a pointer on the current MRML scene.
	qMRMLWidget (QWidget *parent=nullptr, Qt::WindowFlags f=Qt::WindowFlags())
	~qMRMLWidget () override

Additional Inherited Members
Signals inherited from qMRMLWidget
void	mrmlSceneChanged (vtkMRMLScene *)
Static Public Member Functions inherited from qMRMLWidget
static Q_INVOKABLE QPixmap	pixmapFromIcon (const QIcon &icon)
static Q_INVOKABLE void	postInitializeApplication ()
	Initialization that needs to be performed after application object is created.
static Q_INVOKABLE void	preInitializeApplication ()
static QString	safeQStringFromUtf8Ptr (const char *cString)
Protected Attributes inherited from qMRMLWidget
QScopedPointer< qMRMLWidgetPrivate >	d_ptr

Detailed Description

Definition at line 37 of file qMRMLAbstractViewWidget.h.

Member Typedef Documentation

Superclass

typedef qMRMLWidget qMRMLAbstractViewWidget::Superclass

Superclass typedef.

Definition at line 46 of file qMRMLAbstractViewWidget.h.

Property Documentation

viewColor

QColor qMRMLAbstractViewWidget::viewColor

readwrite

Definition at line 42 of file qMRMLAbstractViewWidget.h.

viewLabel

QString qMRMLAbstractViewWidget::viewLabel

readwrite

Definition at line 41 of file qMRMLAbstractViewWidget.h.

Constructor & Destructor Documentation

qMRMLAbstractViewWidget()

qMRMLAbstractViewWidget::qMRMLAbstractViewWidget ( QWidget * parent = nullptr )

explicit

Constructors.

~qMRMLAbstractViewWidget()

qMRMLAbstractViewWidget::~qMRMLAbstractViewWidget ( )

overridedefault

Member Function Documentation

controllerWidget()

virtual Q_INVOKABLE qMRMLViewControllerBar * qMRMLAbstractViewWidget::controllerWidget ( ) const

pure virtual

Get slice controller.

Implemented in qMRMLPlotWidget, qMRMLSliceWidget, qMRMLTableWidget, and qMRMLThreeDWidget.

logic()

virtual Q_INVOKABLE vtkMRMLAbstractLogic * qMRMLAbstractViewWidget::logic ( ) const

virtual

See also

qMRMLSliceControllerWidget::viewLogic()

Reimplemented in qMRMLSliceWidget, and qMRMLThreeDWidget.

mrmlAbstractViewNode()

virtual Q_INVOKABLE vtkMRMLAbstractViewNode * qMRMLAbstractViewWidget::mrmlAbstractViewNode ( ) const

pure virtual

Get the View node observed by view.

Implemented in qMRMLPlotWidget, qMRMLSliceWidget, qMRMLTableWidget, and qMRMLThreeDWidget.

pauseRender

virtual void qMRMLAbstractViewWidget::pauseRender ( )

virtualslot

Increments the pause render count

See also

setPauseRender()

resumeRender

virtual void qMRMLAbstractViewWidget::resumeRender ( )

virtualslot

De-increments the pause render count and calls scheduleRender() if one is currently pending

See also

setPauseRender()

setMRMLAbstractViewNode

virtual void qMRMLAbstractViewWidget::setMRMLAbstractViewNode ( vtkMRMLAbstractViewNode * newViewNode )

pure virtualslot

Set the current viewNode to observe.

setRenderPaused

virtual void qMRMLAbstractViewWidget::setRenderPaused ( bool pause )

virtualslot

Calls pauseRender() if pause is true or resumeRender() if pause is false

See also

pauseRender(), resumeRender()

setViewColor()

virtual Q_INVOKABLE void qMRMLAbstractViewWidget::setViewColor ( const QColor & newViewColor )

virtual

Set the color displayed in the controlled widget.

See also

viewColor()

setViewLabel()

virtual Q_INVOKABLE void qMRMLAbstractViewWidget::setViewLabel ( const QString & newViewLabel )

virtual

Set the text displayed in the controlled widget label.

See also

viewLabel()

viewColor()

virtual Q_INVOKABLE QColor qMRMLAbstractViewWidget::viewColor ( ) const

virtual

Get the color displayed in the controlled widget.

See also

setViewColor()

viewLabel()

virtual Q_INVOKABLE QString qMRMLAbstractViewWidget::viewLabel ( ) const

virtual

Get the text displayed in the controlled widget label.

See also

setViewLabel()

viewWidget()

virtual Q_INVOKABLE QWidget * qMRMLAbstractViewWidget::viewWidget ( ) const

pure virtual

Get a reference to the underlying view widget. Be careful if you change the viewWidget, you might unsynchronize the view from the nodes/logics.

Implemented in qMRMLPlotWidget, qMRMLSliceWidget, qMRMLTableWidget, and qMRMLThreeDWidget.

---

The documentation for this class was generated from the following file:

• Libs/MRML/Widgets/qMRMLAbstractViewWidget.h
