vtkMRMLSliceLogic Class Reference

Slicer logic class for slice manipulation. More...

#include <Libs/MRML/Logic/vtkMRMLSliceLogic.h>

Inheritance diagram for vtkMRMLSliceLogic:

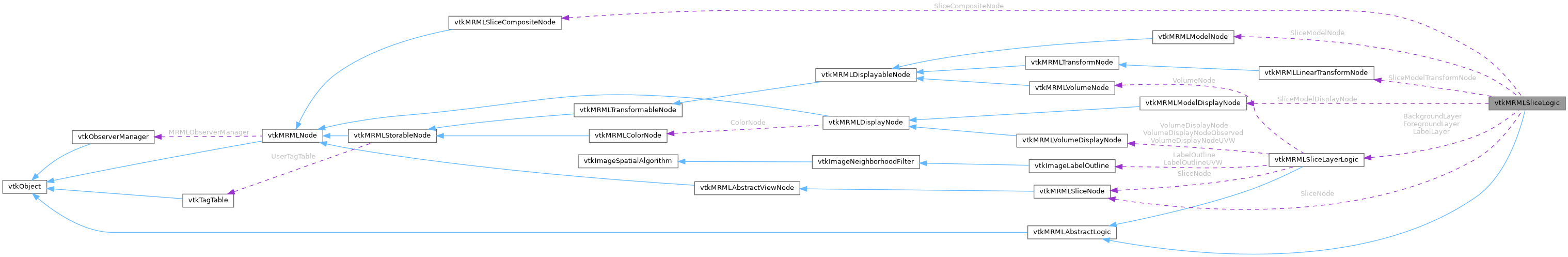

Collaboration diagram for vtkMRMLSliceLogic:

Public Types
enum	{ CompositeModifiedEvent = 18000 }
	CompositeModifiedEvent is generated when slice composite node is modified. More...
enum	{ LayerNone = -1 , LayerBackground = 0 , LayerForeground = 1 , LayerLabel = 2 }
typedef vtkMRMLAbstractLogic	Superclass
Public Types inherited from vtkMRMLAbstractLogic
typedef vtkObject	Superclass
typedef void(vtkMRMLAbstractLogic::*	TaskFunctionPointer) (void *clientdata)

Public Member Functions
vtkMRMLSliceNode *	AddSliceNode (const char *layoutName)
	Convenience function for adding a slice node and setting it in this logic.
void	CreateSliceModel ()
	Make a slice model with the current configuration.
void	DeleteSliceModel ()
void	EndSliceCompositeNodeInteraction ()
	Indicate an interaction with the slice composite node has been completed.
void	EndSliceNodeInteraction ()
	Indicate an interaction with the slice node has been completed.
void	EndSliceOffsetInteraction ()
	Indicate the slice offset value has completed its change.
virtual bool	EnterMRMLCallback () const
void	FitFOVToBackground (double fov)
void	FitSliceToAll (int width=-1, int height=-1)
void	FitSliceToBackground (int width, int height)
	adjust the node's field of view to match the extent of current background volume
void	FitSliceToVolume (vtkMRMLVolumeNode *volumeNode, int width, int height)
	adjust the node's field of view to match the extent of current background volume
virtual vtkMRMLSliceLayerLogic *	GetBackgroundLayer ()
void	GetBackgroundRASBox (double rasDimensions[3], double rasCenter[3])
	Get the size of the volume, transformed to RAS space.
void	GetBackgroundSliceBounds (double sliceBounds[6])
void	GetBackgroundSliceDimensions (double sliceDimensions[3], double sliceCenter[3])
	Get the size of the volume, transformed to slice space.
double *	GetBackgroundSliceSpacing () VTK_SIZEHINT(3)
void	GetBackgroundWindowLevelAndRange (double &window, double &level, double &rangeLow, double &rangeHigh)
	Helper to get the background layer Window/Level and intensity range.
void	GetBackgroundWindowLevelAndRange (double &window, double &level, double &rangeLow, double &rangeHigh, bool &autoWindowLevel)
vtkImageBlend *	GetBlend ()
vtkImageBlend *	GetBlendUVW ()
virtual const char *	GetClassName ()
int	GetEditableLayerAtWorldPosition (double worldPos[3], bool backgroundVolumeEditable=true, bool foregroundVolumeEditable=true)
virtual vtkImageReslice *	GetExtractModelTexture ()
virtual vtkMRMLSliceLayerLogic *	GetForegroundLayer ()
void	GetForegroundWindowLevelAndRange (double &window, double &level, double &rangeLow, double &rangeHigh)
	Helper to get the foreground layer Window/Level and intensity range.
void	GetForegroundWindowLevelAndRange (double &window, double &level, double &rangeLow, double &rangeHigh, bool &autoWindowLevel)
vtkAlgorithmOutput *	GetImageDataConnection ()
virtual vtkMRMLSliceLayerLogic *	GetLabelLayer ()
vtkMRMLVolumeNode *	GetLayerVolumeNode (int layer)
void	GetLowestVolumeSliceBounds (double sliceBounds[6], bool useVoxelCenter=false)
double *	GetLowestVolumeSliceSpacing () VTK_SIZEHINT(3)
std::vector< vtkMRMLDisplayNode * >	GetPolyDataDisplayNodes ()
	Get all slice displaynodes creating PolyData models like glyphs etc.
void	GetSliceBounds (double sliceBounds[6])
	Get the largest slice bounding box for all volumes in layers.
virtual vtkMRMLSliceCompositeNode *	GetSliceCompositeNode ()
	The MRML slice node for this slice logic.
vtkMRMLSliceDisplayNode *	GetSliceDisplayNode ()
	Slice plane display properties.
int	GetSliceIndexFromOffset (double sliceOffset)
int	GetSliceIndexFromOffset (double sliceOffset, vtkMRMLVolumeNode *volumeNode)
virtual vtkMRMLModelDisplayNode *	GetSliceModelDisplayNode ()
virtual vtkMRMLModelNode *	GetSliceModelNode ()
	Model slice plane.
virtual vtkMRMLLinearTransformNode *	GetSliceModelTransformNode ()
	Model slice plane transform from xy to RAS.
virtual vtkMRMLSliceNode *	GetSliceNode ()
	The MRML slice node for this slice logic.
double	GetSliceOffset ()
	Get/Set the current distance from the origin to the slice plane.
bool	GetSliceOffsetRangeResolution (double range[2], double &resolution)
void	GetVolumeSliceBounds (vtkMRMLVolumeNode *volumeNode, double sliceBounds[6], bool useVoxelCenter=false)
void	GetVolumeSliceDimensions (vtkMRMLVolumeNode *volumeNode, double sliceDimensions[3], double sliceCenter[3])
	Get the size of the volume, transformed to slice space.
double *	GetVolumeSliceSpacing (vtkMRMLVolumeNode *volumeNode) VTK_SIZEHINT(3)
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent) override
void	ResizeSliceNode (double newWidth, double newHeight)
void	RotateSliceToLowestVolumeAxes (bool forceSlicePlaneToSingleSlice=true)
void	SetBackgroundLayer (vtkMRMLSliceLayerLogic *BackgroundLayer)
void	SetBackgroundWindowLevel (double window, double level)
	Helper to set the background layer Window/Level.
void	SetForegroundLayer (vtkMRMLSliceLayerLogic *ForegroundLayer)
void	SetForegroundWindowLevel (double window, double level)
	Helper to set the foreground layer Window/Level.
void	SetLabelLayer (vtkMRMLSliceLayerLogic *LabelLayer)
void	SetSliceCompositeNode (vtkMRMLSliceCompositeNode *SliceCompositeNode)
void	SetSliceExtentsToSliceNode ()
	Set slice extents to all layers.
void	SetSliceNode (vtkMRMLSliceNode *newSliceNode)
void	SetSliceOffset (double offset)
void	SnapSliceOffsetToIJK ()
void	StartSliceCompositeNodeInteraction (unsigned int parameters)
void	StartSliceNodeInteraction (unsigned int parameters)
void	StartSliceOffsetInteraction ()
	Indicate the slice offset value is starting to change.
void	UpdateImageData ()
	Internally used by UpdatePipeline.
void	UpdatePipeline ()
	update the pipeline to reflect the current state of the nodes
void	UpdateSliceCompositeNode ()
	Manage and synchronize the SliceCompositeNode.
void	UpdateSliceNode ()
	Manage and synchronize the SliceNode.
void	UpdateSliceNodeFromLayout ()
	Update slicer node given a layout name.
Public Member Functions inherited from vtkMRMLAbstractLogic
virtual vtkMRMLApplicationLogic *	GetMRMLApplicationLogic () const
	Get access to overall application state.
vtkMRMLScene *	GetMRMLScene () const
	Return a reference to the current MRML scene.
void	PrintSelf (ostream &os, vtkIndent indent) override
virtual void	SetMRMLApplicationLogic (vtkMRMLApplicationLogic *logic)
void	SetMRMLScene (vtkMRMLScene *newScene)
	Set and observe the MRMLScene.

Static Public Member Functions
static vtkMRMLSliceCompositeNode *	GetSliceCompositeNode (vtkMRMLSliceNode *node)
	Return the associated slicerlayer nodes.
static vtkMRMLSliceNode *	GetSliceNode (vtkMRMLSliceCompositeNode *node)
	Return the associated slice node.
static void	GetVolumeRASBox (vtkMRMLVolumeNode *volumeNode, double rasDimensions[3], double rasCenter[3])
	Get the size of the volume, transformed to RAS space.
static bool	IsSliceModelDisplayNode (vtkMRMLDisplayNode *mrmlDisplayNode)
static bool	IsSliceModelNode (vtkMRMLNode *mrmlNode)
static int	IsTypeOf (const char *type)
static vtkMRMLSliceLogic *	New ()
	The Usual VTK class functions.
static vtkMRMLSliceLogic *	SafeDownCast (vtkObject *o)
Static Public Member Functions inherited from vtkMRMLAbstractLogic
static int	IsTypeOf (const char *type)
static vtkMRMLAbstractLogic *	New ()
static vtkMRMLAbstractLogic *	SafeDownCast (vtkObject *o)

Static Public Attributes
static const int	SLICE_INDEX_NO_VOLUME
static const int	SLICE_INDEX_OUT_OF_VOLUME
static const int	SLICE_INDEX_ROTATED
static const std::string	SLICE_MODEL_NODE_NAME_SUFFIX

Protected Member Functions
bool	IsEventInsideVolume (bool background, double worldPos[3])
void	OnMRMLNodeModified (vtkMRMLNode *node) override
void	OnMRMLSceneEndImport () override
void	OnMRMLSceneEndRestore () override
void	OnMRMLSceneNodeAdded (vtkMRMLNode *node) override
void	OnMRMLSceneNodeRemoved (vtkMRMLNode *node) override
void	OnMRMLSceneStartClose () override
void	ProcessMRMLLogicsEvents ()
void	ProcessMRMLLogicsEvents (vtkObject *caller, unsigned long event, void *callData) override
	process logic events
void	SetMRMLSceneInternal (vtkMRMLScene *newScene) override
void	SetupCrosshairNode ()
void	SetWindowLevel (double window, double level, int layer)
	Helper to set Window/Level in any layer.
bool	UpdateBlendLayers (vtkImageBlend *blend, const std::deque< SliceLayerInfo > &layers)
bool	UpdateFractions (vtkImageMathematics *fraction, double opacity)
	Helper to update foreground opacity when adding/subtracting the background layer.
void	UpdateFromMRMLScene () override
void	UpdateSliceNodes ()
bool	VolumeWindowLevelEditable (const char *vtkNotUsed(volumeNodeID))
	Deprecated. Returns true if the volume's window/level values are editable on the GUI.
	vtkMRMLSliceLogic ()
	~vtkMRMLSliceLogic () override
Protected Member Functions inherited from vtkMRMLAbstractLogic
int	EndModify (bool wasModifying)
virtual bool	EnterMRMLLogicsCallback () const
virtual bool	EnterMRMLNodesCallback () const
virtual bool	EnterMRMLSceneCallback () const
bool	GetDisableModifiedEvent () const
int	GetInMRMLLogicsCallbackFlag () const
int	GetInMRMLNodesCallbackFlag () const
int	GetInMRMLSceneCallbackFlag () const
vtkCallbackCommand *	GetMRMLLogicsCallbackCommand ()
vtkObserverManager *	GetMRMLLogicsObserverManager () const
vtkCallbackCommand *	GetMRMLNodesCallbackCommand ()
vtkObserverManager *	GetMRMLNodesObserverManager () const
vtkCallbackCommand *	GetMRMLSceneCallbackCommand ()
vtkObserverManager *	GetMRMLSceneObserverManager () const
int	GetPendingModifiedEventCount () const
int	GetProcessingMRMLSceneEvent () const
	Return the event id currently processed or 0 if any.
int	InvokePendingModifiedEvent ()
void	Modified () override
virtual void	ObserveMRMLScene ()
virtual void	OnMRMLSceneEndBatchProcess ()
virtual void	OnMRMLSceneEndClose ()
virtual void	OnMRMLSceneNew ()
virtual void	OnMRMLSceneStartBatchProcess ()
virtual void	OnMRMLSceneStartImport ()
virtual void	OnMRMLSceneStartRestore ()
virtual void	ProcessMRMLNodesEvents (vtkObject *caller, unsigned long event, void *callData)
virtual void	ProcessMRMLSceneEvents (vtkObject *caller, unsigned long event, void *callData)
virtual void	RegisterNodes ()
void	SetAndObserveMRMLSceneEventsInternal (vtkMRMLScene *newScene, vtkIntArray *events, vtkFloatArray *priorities=nullptr)
void	SetDisableModifiedEvent (bool onOff)
void	SetInMRMLLogicsCallbackFlag (int flag)
void	SetInMRMLNodesCallbackFlag (int flag)
void	SetInMRMLSceneCallbackFlag (int flag)
void	SetProcessingMRMLSceneEvent (int event)
bool	StartModify ()
virtual void	UnobserveMRMLScene ()
	vtkMRMLAbstractLogic ()
	~vtkMRMLAbstractLogic () override

Static Protected Member Functions
static vtkMRMLSliceCompositeNode *	GetSliceCompositeNode (vtkMRMLScene *scene, const char *layoutName)
static vtkMRMLSliceNode *	GetSliceNode (vtkMRMLScene *scene, const char *layoutName)
static void	UpdateReconstructionSlab (vtkMRMLSliceLogic *sliceLogic, vtkMRMLSliceLayerLogic *sliceLayerLogic)
	Helper to update reconstruction slab settings for a given layer.
Static Protected Member Functions inherited from vtkMRMLAbstractLogic
static void	MRMLLogicsCallback (vtkObject *caller, unsigned long eid, void *clientData, void *callData)
	MRMLLogicCallback is a static function to relay modified events from the logics.
static void	MRMLNodesCallback (vtkObject *caller, unsigned long eid, void *clientData, void *callData)
	MRMLNodesCallback is a static function to relay modified events from the nodes.
static void	MRMLSceneCallback (vtkObject *caller, unsigned long eid, void *clientData, void *callData)

Protected Attributes
bool	AddingSliceModelNodes
vtkMRMLSliceLayerLogic *	BackgroundLayer
vtkImageReslice *	ExtractModelTexture
vtkMRMLSliceLayerLogic *	ForegroundLayer
vtkAlgorithmOutput *	ImageDataConnection
vtkMRMLSliceLayerLogic *	LabelLayer
BlendPipeline *	Pipeline
BlendPipeline *	PipelineUVW
vtkMRMLSliceCompositeNode *	SliceCompositeNode
vtkMRMLModelDisplayNode *	SliceModelDisplayNode
vtkMRMLModelNode *	SliceModelNode
vtkMRMLLinearTransformNode *	SliceModelTransformNode
vtkMRMLSliceNode *	SliceNode
double	SliceSpacing [3]

Detailed Description

Slicer logic class for slice manipulation.

This class manages the logic associated with display of slice windows (but not the GUI). Features of the class include: – a back-to-front list of MRML volumes to be displayed – a compositing mode for each volume layer (opacity, outline, glyph, checkerboard, etc) – each layer is required to provide an RGBA image in the space defined by the vtkMRMLSliceNode

This class manages internal vtk pipelines that create an output vtkImageData which can be used by the vtkSlicerSliceGUI class to display the resulting composite image or it can be used as a texture map in a vtkSlicerView. This class can also be used for resampling volumes for further computation.

Definition at line 59 of file vtkMRMLSliceLogic.h.

Member Typedef Documentation

Superclass

typedef vtkMRMLAbstractLogic vtkMRMLSliceLogic::Superclass

Definition at line 64 of file vtkMRMLSliceLogic.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

CompositeModifiedEvent is generated when slice composite node is modified.

Enumerator
CompositeModifiedEvent

Definition at line 68 of file vtkMRMLSliceLogic.h.

anonymous enum

anonymous enum

Enumerator
LayerNone
LayerBackground
LayerForeground
LayerLabel

Definition at line 73 of file vtkMRMLSliceLogic.h.

Constructor & Destructor Documentation

vtkMRMLSliceLogic()

vtkMRMLSliceLogic::vtkMRMLSliceLogic ( )

protected

~vtkMRMLSliceLogic()

vtkMRMLSliceLogic::~vtkMRMLSliceLogic ( )

overrideprotected

Member Function Documentation

AddSliceNode()

vtkMRMLSliceNode * vtkMRMLSliceLogic::AddSliceNode

(

const char *

layoutName

)

Convenience function for adding a slice node and setting it in this logic.

CreateSliceModel()

void vtkMRMLSliceLogic::CreateSliceModel

(

)

Make a slice model with the current configuration.

DeleteSliceModel()

void vtkMRMLSliceLogic::DeleteSliceModel

(

)

EndSliceCompositeNodeInteraction()

void vtkMRMLSliceLogic::EndSliceCompositeNodeInteraction

(

)

Indicate an interaction with the slice composite node has been completed.

EndSliceNodeInteraction()

void vtkMRMLSliceLogic::EndSliceNodeInteraction

(

)

Indicate an interaction with the slice node has been completed.

EndSliceOffsetInteraction()

void vtkMRMLSliceLogic::EndSliceOffsetInteraction

(

)

Indicate the slice offset value has completed its change.

EnterMRMLCallback()

virtual bool vtkMRMLSliceLogic::EnterMRMLCallback ( ) const

virtual

Reimplemented to avoid calling ProcessMRMLSceneEvents when we are adding the MRMLModelNode into the scene

FitFOVToBackground()

void vtkMRMLSliceLogic::FitFOVToBackground

(

double

fov

)

adjust the node's field of view to match the FOV the value fov will be applied to the smallest slice window dimension

FitSliceToAll()

void vtkMRMLSliceLogic::FitSliceToAll	(	int	width = -1,
		int	height = -1 )

adjust the node's field of view to match the extent of all volume layers (fits to first non-null layer)

FitSliceToBackground()

void vtkMRMLSliceLogic::FitSliceToBackground	(	int	width,
		int	height )

adjust the node's field of view to match the extent of current background volume

FitSliceToVolume()

void vtkMRMLSliceLogic::FitSliceToVolume	(	vtkMRMLVolumeNode *	volumeNode,
		int	width,
		int	height )

adjust the node's field of view to match the extent of current background volume

GetBackgroundLayer()

virtual vtkMRMLSliceLayerLogic * vtkMRMLSliceLogic::GetBackgroundLayer ( )

virtual

The background slice layer TODO: this will eventually be generalized to a list of layers

GetBackgroundRASBox()

void vtkMRMLSliceLogic::GetBackgroundRASBox	(	double	rasDimensions[3],
		double	rasCenter[3] )

Get the size of the volume, transformed to RAS space.

GetBackgroundSliceBounds()

void vtkMRMLSliceLogic::GetBackgroundSliceBounds

(

double

sliceBounds[6]

)

Get the min/max bounds of the volume

• note these are not translated by the current slice offset so they can be used to calculate the range (e.g. of a slider) that operates in slice space

GetBackgroundSliceDimensions()

void vtkMRMLSliceLogic::GetBackgroundSliceDimensions	(	double	sliceDimensions[3],
		double	sliceCenter[3] )

Get the size of the volume, transformed to slice space.

GetBackgroundSliceSpacing()

double * vtkMRMLSliceLogic::GetBackgroundSliceSpacing

(

)

Get the spacing of the volume, transformed to slice space

• to be used, for example, to set the slice increment for stepping a single voxel relative to the current slice view

GetBackgroundWindowLevelAndRange() [1/2]

void vtkMRMLSliceLogic::GetBackgroundWindowLevelAndRange	(	double &	window,
		double &	level,
		double &	rangeLow,
		double &	rangeHigh )

Helper to get the background layer Window/Level and intensity range.

GetBackgroundWindowLevelAndRange() [2/2]

void vtkMRMLSliceLogic::GetBackgroundWindowLevelAndRange	(	double &	window,
		double &	level,
		double &	rangeLow,
		double &	rangeHigh,
		bool &	autoWindowLevel )

Helper to get the background layer Window/Level, intensity range and status of automatic Window/Level setting

GetBlend()

vtkImageBlend * vtkMRMLSliceLogic::GetBlend

(

)

The compositing filter TODO: this will eventually be generalized to a per-layer compositing function

GetBlendUVW()

vtkImageBlend * vtkMRMLSliceLogic::GetBlendUVW

(

)

GetClassName()

virtual const char * vtkMRMLSliceLogic::GetClassName ( )

virtual

Reimplemented from vtkMRMLAbstractLogic.

GetEditableLayerAtWorldPosition()

int vtkMRMLSliceLogic::GetEditableLayerAtWorldPosition	(	double	worldPos[3],
		bool	backgroundVolumeEditable = true,
		bool	foregroundVolumeEditable = true )

Get volume at the specified world position that should be used for interactions, such as window/level adjustments. backgroundVolumeEditable and foregroundVolumeEditable can be used specify that a volume is not editable (even if it is visible at the given position).

GetExtractModelTexture()

virtual vtkImageReslice * vtkMRMLSliceLogic::GetExtractModelTexture ( )

virtual

An image reslice instance to pull a single slice from the volume that represents the filmsheet display output

GetForegroundLayer()

virtual vtkMRMLSliceLayerLogic * vtkMRMLSliceLogic::GetForegroundLayer ( )

virtual

The foreground slice layer TODO: this will eventually be generalized to a list of layers

GetForegroundWindowLevelAndRange() [1/2]

void vtkMRMLSliceLogic::GetForegroundWindowLevelAndRange	(	double &	window,
		double &	level,
		double &	rangeLow,
		double &	rangeHigh )

Helper to get the foreground layer Window/Level and intensity range.

GetForegroundWindowLevelAndRange() [2/2]

void vtkMRMLSliceLogic::GetForegroundWindowLevelAndRange	(	double &	window,
		double &	level,
		double &	rangeLow,
		double &	rangeHigh,
		bool &	autoWindowLevel )

Helper to get the foreground layer Window/Level, intensity range and status of automatic Window/Level setting

GetImageDataConnection()

vtkAlgorithmOutput * vtkMRMLSliceLogic::GetImageDataConnection

(

)

the tail of the pipeline – returns nullptr if none of the inputs exist

GetLabelLayer()

virtual vtkMRMLSliceLayerLogic * vtkMRMLSliceLogic::GetLabelLayer ( )

virtual

The Label slice layer TODO: this will eventually be generalized to a list of layers

GetLayerVolumeNode()

vtkMRMLVolumeNode * vtkMRMLSliceLogic::GetLayerVolumeNode

(

int

layer

)

Get the volume node corresponding to layer (0=background, 1=foreground, 2=label)

GetLowestVolumeSliceBounds()

void vtkMRMLSliceLogic::GetLowestVolumeSliceBounds	(	double	sliceBounds[6],
		bool	useVoxelCenter = false )

Get the min/max bounds of the lowest volume layer (background, foreground, label)

• note these are not translated by the current slice offset so they can be used to calculate the range (e.g. of a slider) that operates in slice space
• returns first non-null layer If useVoxelCenter is set to false (default) then bounds of voxel sides are returned (otherwise then bounds of voxels centers are returned).

GetLowestVolumeSliceSpacing()

double * vtkMRMLSliceLogic::GetLowestVolumeSliceSpacing

(

)

Get the spacing of the lowest volume layer (background, foreground, label), transformed to slice space

• to be used, for example, to set the slice increment for stepping a single voxel relative to the current slice view
• returns first non-null layer

GetPolyDataDisplayNodes()

std::vector< vtkMRMLDisplayNode * > vtkMRMLSliceLogic::GetPolyDataDisplayNodes

(

)

Get all slice displaynodes creating PolyData models like glyphs etc.

GetSliceBounds()

void vtkMRMLSliceLogic::GetSliceBounds

(

double

sliceBounds[6]

)

Get the largest slice bounding box for all volumes in layers.

GetSliceCompositeNode() [1/3]

virtual vtkMRMLSliceCompositeNode * vtkMRMLSliceLogic::GetSliceCompositeNode ( )

virtual

The MRML slice node for this slice logic.

GetSliceCompositeNode() [2/3]

static vtkMRMLSliceCompositeNode * vtkMRMLSliceLogic::GetSliceCompositeNode ( vtkMRMLScene * scene, const char * layoutName )

staticprotected

GetSliceCompositeNode() [3/3]

static vtkMRMLSliceCompositeNode * vtkMRMLSliceLogic::GetSliceCompositeNode ( vtkMRMLSliceNode * node )

static

Return the associated slicerlayer nodes.

GetSliceDisplayNode()

vtkMRMLSliceDisplayNode * vtkMRMLSliceLogic::GetSliceDisplayNode

(

)

Slice plane display properties.

GetSliceIndexFromOffset() [1/2]

int vtkMRMLSliceLogic::GetSliceIndexFromOffset

(

double

sliceOffset

)

Get the DICOM slice index (1-based) from slice offset (distance from the origin to the slice plane). Slice index is computed for the first available volume (the search order is background, foreground, label volume). If the return value is negative then then no slice index can be determined for the first available volume: SLICE_INDEX_ROTATED=the slice is rotated compared to the volume planes, SLICE_INDEX_OUT_OF_VOLUME=the slice plane is out of the volume SLICE_INDEX_NO_VOLUME=no volume is available

GetSliceIndexFromOffset() [2/2]

int vtkMRMLSliceLogic::GetSliceIndexFromOffset	(	double	sliceOffset,
		vtkMRMLVolumeNode *	volumeNode )

Get the DICOM slice index (1-based) from slice offset (distance from the origin to the slice plane). If the return value is negative then then no slice index can be determined: SLICE_INDEX_ROTATED=the slice is rotated compared to the volume planes, SLICE_INDEX_OUT_OF_VOLUME=the slice plane is out of the volume SLICE_INDEX_NO_VOLUME=the specified volume is not available

GetSliceModelDisplayNode()

virtual vtkMRMLModelDisplayNode * vtkMRMLSliceLogic::GetSliceModelDisplayNode ( )

virtual

Model slice plane display properties. The method is deprecated, use SliceDisplayNode instead.

GetSliceModelNode()

virtual vtkMRMLModelNode * vtkMRMLSliceLogic::GetSliceModelNode ( )

virtual

Model slice plane.

GetSliceModelTransformNode()

virtual vtkMRMLLinearTransformNode * vtkMRMLSliceLogic::GetSliceModelTransformNode ( )

virtual

Model slice plane transform from xy to RAS.

GetSliceNode() [1/3]

virtual vtkMRMLSliceNode * vtkMRMLSliceLogic::GetSliceNode ( )

virtual

The MRML slice node for this slice logic.

GetSliceNode() [2/3]

static vtkMRMLSliceNode * vtkMRMLSliceLogic::GetSliceNode ( vtkMRMLScene * scene, const char * layoutName )

staticprotected

GetSliceNode() [3/3]

static vtkMRMLSliceNode * vtkMRMLSliceLogic::GetSliceNode ( vtkMRMLSliceCompositeNode * node )

static

Return the associated slice node.

GetSliceOffset()

double vtkMRMLSliceLogic::GetSliceOffset

(

)

Get/Set the current distance from the origin to the slice plane.

GetSliceOffsetRangeResolution()

bool vtkMRMLSliceLogic::GetSliceOffsetRangeResolution	(	double	range[2],
		double &	resolution )

Get range and resolution for slice offset sliders. Returns false if the information cannot be determined.

GetVolumeRASBox()

static void vtkMRMLSliceLogic::GetVolumeRASBox ( vtkMRMLVolumeNode * volumeNode, double rasDimensions[3], double rasCenter[3] )

static

Get the size of the volume, transformed to RAS space.

GetVolumeSliceBounds()

void vtkMRMLSliceLogic::GetVolumeSliceBounds	(	vtkMRMLVolumeNode *	volumeNode,
		double	sliceBounds[6],
		bool	useVoxelCenter = false )

Get the min/max bounds of the volume

• note these are not translated by the current slice offset so they can be used to calculate the range (e.g. of a slider) that operates in slice space If useVoxelCenter is set to false (default) then bounds of voxel sides are returned (otherwise then bounds of voxels centers are returned).

GetVolumeSliceDimensions()

void vtkMRMLSliceLogic::GetVolumeSliceDimensions	(	vtkMRMLVolumeNode *	volumeNode,
		double	sliceDimensions[3],
		double	sliceCenter[3] )

Get the size of the volume, transformed to slice space.

GetVolumeSliceSpacing()

double * vtkMRMLSliceLogic::GetVolumeSliceSpacing

(

vtkMRMLVolumeNode *

volumeNode

)

Get the spacing of the volume, transformed to slice space

• to be used, for example, to set the slice increment for stepping a single voxel relative to the current slice view

IsA()

virtual int vtkMRMLSliceLogic::IsA ( const char * type )

virtual

Reimplemented from vtkMRMLAbstractLogic.

IsEventInsideVolume()

bool vtkMRMLSliceLogic::IsEventInsideVolume ( bool background, double worldPos[3] )

protected

Returns true if position is inside the selected layer volume. Use background flag to choose between foreground/background layer.

IsSliceModelDisplayNode()

static bool vtkMRMLSliceLogic::IsSliceModelDisplayNode ( vtkMRMLDisplayNode * mrmlDisplayNode )

static

Return true if the display node is a volume slice node display node by checking the attribute SliceLogic.IsSliceModelDisplayNode Returns false if the attribute is not present, true if the attribute is present and not equal to zero

IsSliceModelNode()

static bool vtkMRMLSliceLogic::IsSliceModelNode ( vtkMRMLNode * mrmlNode )

static

Return true if the node is a model node that has the default volume slice node name suffix, false otherwise

See also

SLICE_MODEL_NODE_NAME_SUFFIX

IsTypeOf()

static int vtkMRMLSliceLogic::IsTypeOf ( const char * type )

static

New()

static vtkMRMLSliceLogic * vtkMRMLSliceLogic::New ( )

static

The Usual VTK class functions.

OnMRMLNodeModified()

void vtkMRMLSliceLogic::OnMRMLNodeModified ( vtkMRMLNode * )

overrideprotectedvirtual

Called after the corresponding MRML event is triggered.

See also

ProcessMRMLNodesEvents

Reimplemented from vtkMRMLAbstractLogic.

OnMRMLSceneEndImport()

void vtkMRMLSliceLogic::OnMRMLSceneEndImport ( )

overrideprotectedvirtual

If vtkMRMLScene::EndImportEvent has been set to be observed in SetMRMLSceneInternal, it is called when the scene fires the event

See also

ProcessMRMLSceneEvents, SetMRMLSceneInternal

OnMRMLSceneStartImport, OnMRMLSceneNew

Reimplemented from vtkMRMLAbstractLogic.

OnMRMLSceneEndRestore()

void vtkMRMLSliceLogic::OnMRMLSceneEndRestore ( )

overrideprotectedvirtual

If vtkMRMLScene::EndRestoreEvent has been set to be observed in SetMRMLSceneInternal, it is called when the scene fires the event

See also

ProcessMRMLSceneEvents, SetMRMLSceneInternal

OnMRMLSceneStartRestore

Reimplemented from vtkMRMLAbstractLogic.

OnMRMLSceneNodeAdded()

void vtkMRMLSliceLogic::OnMRMLSceneNodeAdded ( vtkMRMLNode * )

overrideprotectedvirtual

If vtkMRMLScene::NodeAddedEvent has been set to be observed in SetMRMLSceneInternal, it is called when the scene fires the event

See also

ProcessMRMLSceneEvents, SetMRMLSceneInternal

OnMRMLSceneNodeRemoved, vtkMRMLScene::NodeAboutToBeAdded

Reimplemented from vtkMRMLAbstractLogic.

OnMRMLSceneNodeRemoved()

void vtkMRMLSliceLogic::OnMRMLSceneNodeRemoved ( vtkMRMLNode * )

overrideprotectedvirtual

If vtkMRMLScene::NodeRemovedEvent has been set to be observed in SetMRMLSceneInternal, it is called when the scene fires the event

See also

ProcessMRMLSceneEvents, SetMRMLSceneInternal

OnMRMLSceneNodeAdded, vtkMRMLScene::NodeAboutToBeRemoved

Reimplemented from vtkMRMLAbstractLogic.

OnMRMLSceneStartClose()

void vtkMRMLSliceLogic::OnMRMLSceneStartClose ( )

overrideprotectedvirtual

If vtkMRMLScene::StartCloseEvent has been set to be observed in SetMRMLSceneInternal, it is called when the scene fires the event

See also

ProcessMRMLSceneEvents, SetMRMLSceneInternal

OnMRMLSceneEndClose

Reimplemented from vtkMRMLAbstractLogic.

PrintSelf()

void vtkMRMLSliceLogic::PrintSelf ( ostream & os, vtkIndent indent )

override

ProcessMRMLLogicsEvents() [1/2]

void vtkMRMLSliceLogic::ProcessMRMLLogicsEvents ( )

protected

ProcessMRMLLogicsEvents() [2/2]

void vtkMRMLSliceLogic::ProcessMRMLLogicsEvents ( vtkObject * caller, unsigned long event, void * callData )

overrideprotectedvirtual

process logic events

Reimplemented from vtkMRMLAbstractLogic.

ResizeSliceNode()

void vtkMRMLSliceLogic::ResizeSliceNode	(	double	newWidth,
		double	newHeight )

Adjust dimensions and fov based on the new viewport size. The size should be the viewport size (typically vtkRenderWindow), not the size of the renderers (important if it's in a lightbox mode). It must be called each time the renderwindow size is modified and each time the lightbox configuration is changed.

RotateSliceToLowestVolumeAxes()

void vtkMRMLSliceLogic::RotateSliceToLowestVolumeAxes

(

bool

forceSlicePlaneToSingleSlice = true

)

Rotate slice view to match axes of the lowest volume layer (background, foreground, label).

Parameters

forceSlicePlaneToSingleSlice

If the volume is single-slice and forceSlicePlaneToSingleSlice is enabled then slice view will be aligned with the volume's slice plane. If the flag is disabled of the volume has more than one slice then the slice view will be rotated to the closest orthogonal axis.

SafeDownCast()

static vtkMRMLSliceLogic * vtkMRMLSliceLogic::SafeDownCast ( vtkObject * o )

static

SetBackgroundLayer()

void vtkMRMLSliceLogic::SetBackgroundLayer

(

vtkMRMLSliceLayerLogic *

BackgroundLayer

)

SetBackgroundWindowLevel()

void vtkMRMLSliceLogic::SetBackgroundWindowLevel	(	double	window,
		double	level )

Helper to set the background layer Window/Level.

SetForegroundLayer()

void vtkMRMLSliceLogic::SetForegroundLayer

(

vtkMRMLSliceLayerLogic *

ForegroundLayer

)

SetForegroundWindowLevel()

void vtkMRMLSliceLogic::SetForegroundWindowLevel	(	double	window,
		double	level )

Helper to set the foreground layer Window/Level.

SetLabelLayer()

void vtkMRMLSliceLogic::SetLabelLayer

(

vtkMRMLSliceLayerLogic *

LabelLayer

)

SetMRMLSceneInternal()

void vtkMRMLSliceLogic::SetMRMLSceneInternal ( vtkMRMLScene * newScene )

overrideprotectedvirtual

Called each time a new scene is set. Can be reimplemented in derived classes. Doesn't observe the scene by default, that means that UpdateFromMRMLScene() won't be called by default when a scene is imported, closed or restored, only when a new scene is set.

See also

SetAndObserveMRMLSceneInternal() SetAndObserveMRMLSceneEventsInternal()

UpdateFromMRMLScene()

Reimplemented from vtkMRMLAbstractLogic.

SetSliceCompositeNode()

void vtkMRMLSliceLogic::SetSliceCompositeNode

(

vtkMRMLSliceCompositeNode *

SliceCompositeNode

)

SetSliceExtentsToSliceNode()

void vtkMRMLSliceLogic::SetSliceExtentsToSliceNode

(

)

Set slice extents to all layers.

SetSliceNode()

void vtkMRMLSliceLogic::SetSliceNode

(

vtkMRMLSliceNode *

newSliceNode

)

SetSliceOffset()

void vtkMRMLSliceLogic::SetSliceOffset

(

double

offset

)

SetupCrosshairNode()

void vtkMRMLSliceLogic::SetupCrosshairNode ( )

protected

SetWindowLevel()

void vtkMRMLSliceLogic::SetWindowLevel ( double window, double level, int layer )

protected

Helper to set Window/Level in any layer.

SnapSliceOffsetToIJK()

void vtkMRMLSliceLogic::SnapSliceOffsetToIJK

(

)

Set the current distance so that it corresponds to the closest center of a voxel in IJK space (integer value)

StartSliceCompositeNodeInteraction()

void vtkMRMLSliceLogic::StartSliceCompositeNodeInteraction

(

unsigned int

parameters

)

Indicate an interaction with the slice composite node is beginning. The parameters of the slice node being manipulated are passed as a bitmask. See vtkMRMLSliceNode::InteractionFlagType.

StartSliceNodeInteraction()

void vtkMRMLSliceLogic::StartSliceNodeInteraction

(

unsigned int

parameters

)

Indicate an interaction with the slice node is beginning. The parameters of the slice node being manipulated are passed as a bitmask. See vtkMRMLSliceNode::InteractionFlagType.

StartSliceOffsetInteraction()

void vtkMRMLSliceLogic::StartSliceOffsetInteraction

(

)

Indicate the slice offset value is starting to change.

UpdateBlendLayers()

bool vtkMRMLSliceLogic::UpdateBlendLayers ( vtkImageBlend * blend, const std::deque< SliceLayerInfo > & layers )

protected

Helper to update input of blend filter from a set of layers. It minimizes changes to the imaging pipeline (does not remove and re-add an input if it is not changed) because rebuilding of the pipeline is a relatively expensive operation.

UpdateFractions()

bool vtkMRMLSliceLogic::UpdateFractions ( vtkImageMathematics * fraction, double opacity )

protected

Helper to update foreground opacity when adding/subtracting the background layer.

UpdateFromMRMLScene()

void vtkMRMLSliceLogic::UpdateFromMRMLScene ( )

overrideprotectedvirtual

Called every time the scene has been significantly changed. If the scene BatchProcessState events are observed (in SetMRMLSceneInternal() ), UpdateFromMRMLScene is called after each batch process (Close, Import, Restore...). It is also being called by default when a new scene is set (SetMRMLScene).

See also

SetMRMLSceneInternal, UnobserveMRMLScene, ObserveMRMLScene

Reimplemented from vtkMRMLAbstractLogic.

UpdateImageData()

void vtkMRMLSliceLogic::UpdateImageData

(

)

Internally used by UpdatePipeline.

UpdatePipeline()

void vtkMRMLSliceLogic::UpdatePipeline

(

)

update the pipeline to reflect the current state of the nodes

UpdateReconstructionSlab()

static void vtkMRMLSliceLogic::UpdateReconstructionSlab ( vtkMRMLSliceLogic * sliceLogic, vtkMRMLSliceLayerLogic * sliceLayerLogic )

staticprotected

Helper to update reconstruction slab settings for a given layer.

UpdateSliceCompositeNode()

void vtkMRMLSliceLogic::UpdateSliceCompositeNode

(

)

Manage and synchronize the SliceCompositeNode.

UpdateSliceNode()

void vtkMRMLSliceLogic::UpdateSliceNode

(

)

Manage and synchronize the SliceNode.

UpdateSliceNodeFromLayout()

void vtkMRMLSliceLogic::UpdateSliceNodeFromLayout

(

)

Update slicer node given a layout name.

UpdateSliceNodes()

void vtkMRMLSliceLogic::UpdateSliceNodes ( )

protected

VolumeWindowLevelEditable()

bool vtkMRMLSliceLogic::VolumeWindowLevelEditable ( const char * vtkNotUsedvolumeNodeID )

inlineprotected

Deprecated. Returns true if the volume's window/level values are editable on the GUI.

Definition at line 441 of file vtkMRMLSliceLogic.h.

Member Data Documentation

AddingSliceModelNodes

bool vtkMRMLSliceLogic::AddingSliceModelNodes

protected

Definition at line 448 of file vtkMRMLSliceLogic.h.

BackgroundLayer

vtkMRMLSliceLayerLogic* vtkMRMLSliceLogic::BackgroundLayer

protected

Definition at line 452 of file vtkMRMLSliceLogic.h.

ExtractModelTexture

vtkImageReslice* vtkMRMLSliceLogic::ExtractModelTexture

protected

Definition at line 458 of file vtkMRMLSliceLogic.h.

ForegroundLayer

vtkMRMLSliceLayerLogic* vtkMRMLSliceLogic::ForegroundLayer

protected

Definition at line 453 of file vtkMRMLSliceLogic.h.

ImageDataConnection

vtkAlgorithmOutput* vtkMRMLSliceLogic::ImageDataConnection

protected

Definition at line 459 of file vtkMRMLSliceLogic.h.

LabelLayer

vtkMRMLSliceLayerLogic* vtkMRMLSliceLogic::LabelLayer

protected

Definition at line 454 of file vtkMRMLSliceLogic.h.

Pipeline

BlendPipeline* vtkMRMLSliceLogic::Pipeline

protected

Definition at line 456 of file vtkMRMLSliceLogic.h.

PipelineUVW

BlendPipeline* vtkMRMLSliceLogic::PipelineUVW

protected

Definition at line 457 of file vtkMRMLSliceLogic.h.

SLICE_INDEX_NO_VOLUME

const int vtkMRMLSliceLogic::SLICE_INDEX_NO_VOLUME

static

Definition at line 333 of file vtkMRMLSliceLogic.h.

SLICE_INDEX_OUT_OF_VOLUME

const int vtkMRMLSliceLogic::SLICE_INDEX_OUT_OF_VOLUME

static

Definition at line 332 of file vtkMRMLSliceLogic.h.

SLICE_INDEX_ROTATED

const int vtkMRMLSliceLogic::SLICE_INDEX_ROTATED

static

Definition at line 331 of file vtkMRMLSliceLogic.h.

SLICE_MODEL_NODE_NAME_SUFFIX

const std::string vtkMRMLSliceLogic::SLICE_MODEL_NODE_NAME_SUFFIX

static

Default node name suffix for use with volume slice models to distinguish them as built in models rather than user accessible.

See also

IsSliceModelNode

Definition at line 368 of file vtkMRMLSliceLogic.h.

SliceCompositeNode

vtkMRMLSliceCompositeNode* vtkMRMLSliceLogic::SliceCompositeNode

protected

Definition at line 451 of file vtkMRMLSliceLogic.h.

SliceModelDisplayNode

vtkMRMLModelDisplayNode* vtkMRMLSliceLogic::SliceModelDisplayNode

protected

Definition at line 462 of file vtkMRMLSliceLogic.h.

SliceModelNode

vtkMRMLModelNode* vtkMRMLSliceLogic::SliceModelNode

protected

Definition at line 461 of file vtkMRMLSliceLogic.h.

SliceModelTransformNode

vtkMRMLLinearTransformNode* vtkMRMLSliceLogic::SliceModelTransformNode

protected

Definition at line 463 of file vtkMRMLSliceLogic.h.

SliceNode

vtkMRMLSliceNode* vtkMRMLSliceLogic::SliceNode

protected

Definition at line 450 of file vtkMRMLSliceLogic.h.

SliceSpacing

double vtkMRMLSliceLogic::SliceSpacing[3]

protected

Definition at line 464 of file vtkMRMLSliceLogic.h.

---

The documentation for this class was generated from the following file:

• Libs/MRML/Logic/vtkMRMLSliceLogic.h
