AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect Class Reference

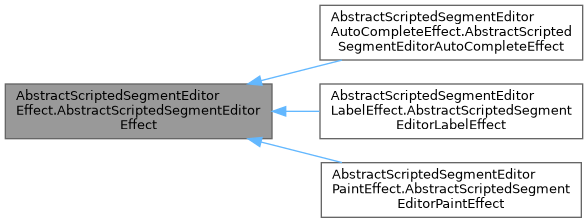

Inheritance diagram for AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect:

Public Member Functions
	__init__ (self, scriptedEffect)
	rasToXy (self, ras, viewWidget)
	register (self)
	setWidgetMinMaxStepFromImageSpacing (self, spinbox, imageData)
	xyToIjk (self, xy, viewWidget, image, parentTransformNode=None)
	xyToRas (self, xy, viewWidget)
	xyzToIjk (self, xyz, viewWidget, image, parentTransformNode=None)
	xyzToRas (self, xyz, viewWidget)

Public Attributes
	scriptedEffect

Detailed Description

 Abstract scripted segment editor effects for effects implemented in python

    USAGE:
    1. Instantiation and registration
      Instantiate segment editor effect adaptor class from
      module (e.g. from setup function), and set python source:
      > import qSlicerSegmentationsEditorEffectsPythonQt as effects
      > scriptedEffect = effects.qSlicerSegmentEditorScriptedEffect(None)
      > scriptedEffect.setPythonSource(MyEffect.filePath)
      > scriptedEffect.self().register()
      If effect name is added to slicer.modules.segmenteditorscriptedeffectnames
      list then the above instantiation and registration steps are not necessary,
      as the SegmentEditor module do all these.

    2. Call host C++ implementation using
      > self.scriptedEffect.functionName()

    2.a. Most frequently used such methods are:
      Parameter get/set: parameter, integerParameter, doubleParameter, setParameter
      Add options widget: addOptionsWidget
      Coordinate transforms: rasToXy, xyzToRas, xyToRas, xyzToIjk, xyToIjk
      Convenience getters: renderWindow, renderer, viewNode

    2.b. Always call API functions (the ones that are defined in the adaptor
      class qSlicerSegmentEditorScriptedEffect) using the adaptor accessor:
      > self.scriptedEffect.updateGUIFromMRML()

    3. To prevent deactivation of an effect by clicking place fiducial toolbar button,
       override interactionNodeModified(self, interactionNode)

    An example for a generic effect is the ThresholdEffect

Definition at line 10 of file AbstractScriptedSegmentEditorEffect.py.

Constructor & Destructor Documentation

__init__()

AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.__init__	(		self,
			scriptedEffect )

Reimplemented in AbstractScriptedSegmentEditorAutoCompleteEffect.AbstractScriptedSegmentEditorAutoCompleteEffect, AbstractScriptedSegmentEditorLabelEffect.AbstractScriptedSegmentEditorLabelEffect, and AbstractScriptedSegmentEditorPaintEffect.AbstractScriptedSegmentEditorPaintEffect.

Definition at line 45 of file AbstractScriptedSegmentEditorEffect.py.

Member Function Documentation

rasToXy()

AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.rasToXy	(		self,
			ras,
			viewWidget )

Definition at line 55 of file AbstractScriptedSegmentEditorEffect.py.

register()

AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.register

(

self

)

Definition at line 48 of file AbstractScriptedSegmentEditorEffect.py.

setWidgetMinMaxStepFromImageSpacing()

AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.setWidgetMinMaxStepFromImageSpacing	(		self,
			spinbox,
			imageData )

Definition at line 80 of file AbstractScriptedSegmentEditorEffect.py.

xyToIjk()

AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.xyToIjk	(		self,
			xy,
			viewWidget,
			image,
			parentTransformNode = None )

Definition at line 75 of file AbstractScriptedSegmentEditorEffect.py.

xyToRas()

AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.xyToRas	(		self,
			xy,
			viewWidget )

Definition at line 65 of file AbstractScriptedSegmentEditorEffect.py.

xyzToIjk()

AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.xyzToIjk	(		self,
			xyz,
			viewWidget,
			image,
			parentTransformNode = None )

Definition at line 70 of file AbstractScriptedSegmentEditorEffect.py.

xyzToRas()

AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.xyzToRas	(		self,
			xyz,
			viewWidget )

Definition at line 60 of file AbstractScriptedSegmentEditorEffect.py.

Member Data Documentation

scriptedEffect

AbstractScriptedSegmentEditorEffect.AbstractScriptedSegmentEditorEffect.scriptedEffect

Definition at line 46 of file AbstractScriptedSegmentEditorEffect.py.

---

The documentation for this class was generated from the following file:

• Modules/Loadable/Segmentations/EditorEffects/Python/AbstractScriptedSegmentEditorEffect.py
