vtkMRMLAbstractVolumeResampler Class Reference

Base class for volume resampler. More...

#include <Modules/Loadable/GeneralizedReformat/MRML/vtkMRMLAbstractVolumeResampler.h>

Inheritance diagram for vtkMRMLAbstractVolumeResampler:

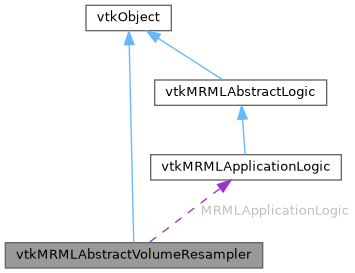

Collaboration diagram for vtkMRMLAbstractVolumeResampler:

Public Types
enum	{   InterpolationTypeUndefined , InterpolationTypeNearestNeighbor , InterpolationTypeLinear , InterpolationTypeWindowedSinc ,   InterpolationTypeBSpline , InterpolationType_Last }
typedef std::map< std::string, std::string >	ResamplingParameters
typedef vtkObject	Superclass

Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent) override
virtual bool	Resample (vtkMRMLVolumeNode *inputVolume, vtkMRMLVolumeNode *outputVolume, vtkMRMLTransformNode *resamplingTransform, vtkMRMLVolumeNode *referenceVolume, int interpolationType, const ResamplingParameters &resamplingParameter)=0

Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkMRMLAbstractVolumeResampler *	SafeDownCast (vtkObject *o)
vtkMRMLApplicationLogic *	MRMLApplicationLogic { nullptr }
void	SetMRMLApplicationLogic (vtkMRMLApplicationLogic *appLogic)
	}@
vtkMRMLApplicationLogic *	GetMRMLApplicationLogic () const
static std::string	GetParameterValue (const ResamplingParameters &parameters, const std::string &name)
static double	GetParameterValueAsDouble (const ResamplingParameters &parameters, const std::string &name)
static int	GetParameterValueAsInt (const ResamplingParameters &parameters, const std::string &name)
static void	SetParameterValue (ResamplingParameters &parameters, const std::string &name, const std::string &value)
	}@
static void	SetParameterValueAsDouble (ResamplingParameters &parameters, const std::string &name, double value)
static void	SetParameterValueAsInt (ResamplingParameters &parameters, const std::string &name, int value)
	vtkMRMLAbstractVolumeResampler ()=default
	}@
	~vtkMRMLAbstractVolumeResampler () override=default
	vtkMRMLAbstractVolumeResampler (const vtkMRMLAbstractVolumeResampler &)=delete
void	operator= (const vtkMRMLAbstractVolumeResampler &)=delete

Detailed Description

Base class for volume resampler.

Sub-classes must implement actual resampling.

Definition at line 38 of file vtkMRMLAbstractVolumeResampler.h.

Member Typedef Documentation

ResamplingParameters

typedef std::map<std::string, std::string> vtkMRMLAbstractVolumeResampler::ResamplingParameters

Definition at line 54 of file vtkMRMLAbstractVolumeResampler.h.

Superclass

typedef vtkObject vtkMRMLAbstractVolumeResampler::Superclass

Definition at line 41 of file vtkMRMLAbstractVolumeResampler.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
InterpolationTypeUndefined
InterpolationTypeNearestNeighbor
InterpolationTypeLinear
InterpolationTypeWindowedSinc
InterpolationTypeBSpline
InterpolationType_Last

Definition at line 44 of file vtkMRMLAbstractVolumeResampler.h.

Constructor & Destructor Documentation

vtkMRMLAbstractVolumeResampler() [1/2]

vtkMRMLAbstractVolumeResampler::vtkMRMLAbstractVolumeResampler ( )

protecteddefault

}@

~vtkMRMLAbstractVolumeResampler()

vtkMRMLAbstractVolumeResampler::~vtkMRMLAbstractVolumeResampler ( )

overrideprotecteddefault

vtkMRMLAbstractVolumeResampler() [2/2]

vtkMRMLAbstractVolumeResampler::vtkMRMLAbstractVolumeResampler ( const vtkMRMLAbstractVolumeResampler & )

protecteddelete

Member Function Documentation

GetClassName()

virtual const char * vtkMRMLAbstractVolumeResampler::GetClassName ( )

virtual

Reimplemented in vtkMRMLScalarVectorDWIVolumeResampler.

GetMRMLApplicationLogic()

vtkMRMLApplicationLogic * vtkMRMLAbstractVolumeResampler::GetMRMLApplicationLogic

(

)

const

GetParameterValue()

static std::string vtkMRMLAbstractVolumeResampler::GetParameterValue ( const ResamplingParameters & parameters, const std::string & name )

static

Get resampling parameter value

GetParameterValueAsDouble()

static double vtkMRMLAbstractVolumeResampler::GetParameterValueAsDouble ( const ResamplingParameters & parameters, const std::string & name )

static

GetParameterValueAsInt()

static int vtkMRMLAbstractVolumeResampler::GetParameterValueAsInt ( const ResamplingParameters & parameters, const std::string & name )

static

IsA()

virtual int vtkMRMLAbstractVolumeResampler::IsA ( const char * type )

virtual

Reimplemented in vtkMRMLScalarVectorDWIVolumeResampler.

IsTypeOf()

static int vtkMRMLAbstractVolumeResampler::IsTypeOf ( const char * type )

static

operator=()

void vtkMRMLAbstractVolumeResampler::operator= ( const vtkMRMLAbstractVolumeResampler & )

protecteddelete

PrintSelf()

void vtkMRMLAbstractVolumeResampler::PrintSelf ( ostream & os, vtkIndent indent )

override

Resample()

virtual bool vtkMRMLAbstractVolumeResampler::Resample ( vtkMRMLVolumeNode * inputVolume, vtkMRMLVolumeNode * outputVolume, vtkMRMLTransformNode * resamplingTransform, vtkMRMLVolumeNode * referenceVolume, int interpolationType, const ResamplingParameters & resamplingParameter )

pure virtual

Implemented in vtkMRMLScalarVectorDWIVolumeResampler.

SafeDownCast()

static vtkMRMLAbstractVolumeResampler * vtkMRMLAbstractVolumeResampler::SafeDownCast ( vtkObject * o )

static

SetMRMLApplicationLogic()

void vtkMRMLAbstractVolumeResampler::SetMRMLApplicationLogic

(

vtkMRMLApplicationLogic *

appLogic

)

}@

Set/Get MRML application logic to access the overall application state.

SetParameterValue()

static void vtkMRMLAbstractVolumeResampler::SetParameterValue ( ResamplingParameters & parameters, const std::string & name, const std::string & value )

static

}@

Set resampling parameter value

SetParameterValueAsDouble()

static void vtkMRMLAbstractVolumeResampler::SetParameterValueAsDouble ( ResamplingParameters & parameters, const std::string & name, double value )

static

SetParameterValueAsInt()

static void vtkMRMLAbstractVolumeResampler::SetParameterValueAsInt ( ResamplingParameters & parameters, const std::string & name, int value )

static

Member Data Documentation

MRMLApplicationLogic

vtkMRMLApplicationLogic* vtkMRMLAbstractVolumeResampler::MRMLApplicationLogic { nullptr }

protected

Definition at line 89 of file vtkMRMLAbstractVolumeResampler.h.

---

The documentation for this class was generated from the following file:

• Modules/Loadable/GeneralizedReformat/MRML/vtkMRMLAbstractVolumeResampler.h
